aube.cpp File Reference

#include "auryn.h"
#include <iostream>
#include <fstream>
#include <vector>
#include "auryn/AurynVersion.h"

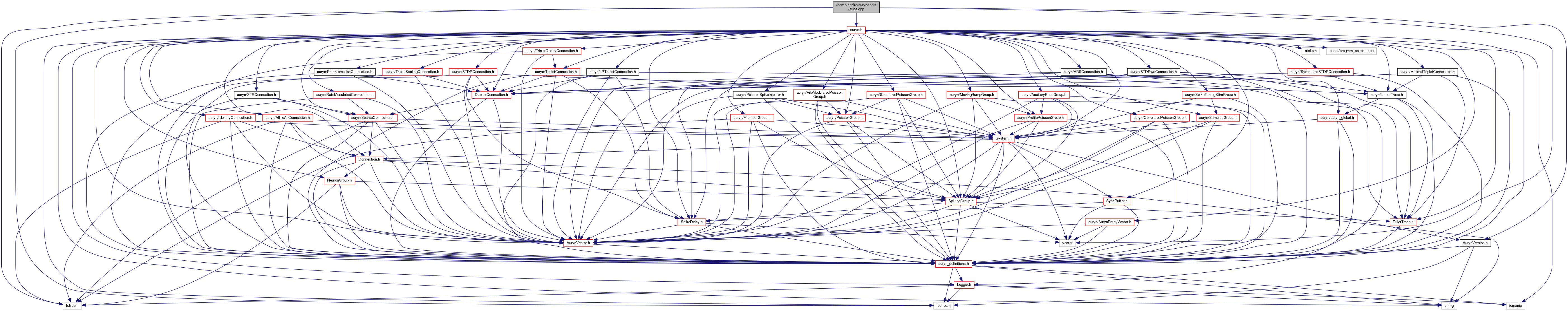

Include dependency graph for aube.cpp:

Functions
AurynLong	find_frame (std::ifstream *file, AurynTime target)
void	read_header (std::ifstream *input, double &dt, AurynLong num_events, double &last_time, std::string filename)
int	main (int ac, char *av[])

Function Documentation

find_frame()

AurynLong find_frame	(	std::ifstream *	file,
		AurynTime	target
	)

Perform binary search on ifstream to extract frame number from a target time reference that should be given in discrete time.

{
        // get number of elements
        file->seekg (0, file->end);
        AurynLong num_of_frames = file->tellg()/sizeof(SpikeEvent_type);

        AurynLong lo = 1; // first frame is used for header
        AurynLong hi = num_of_frames;

        while ( lo+1 < hi ) {
                AurynLong pivot = lo + (hi-lo)/2;
                file->seekg (pivot*sizeof(SpikeEvent_type), file->beg);

                SpikeEvent_type spike_data;
                file->read((char*)&spike_data, sizeof(SpikeEvent_type));

                if ( spike_data.time < target ) lo = pivot;
                else hi = pivot;
        }

        return lo;
}

main()

int main	(	int	ac,
		char *	av[]
	)

{
        std::vector<std::string> input_filenames;
        std::vector<std::ifstream*> inputs;

        std::string output_file_name = "";
        double from_time = 0.0;
        double to_time   = -1.0;
        double seconds_to_extract_from_end = -1.0; // negative means disabled
        NeuronID maxid = std::numeric_limits<NeuronID>::max();
        // one more decimal than neede to show values are not rounded
        bool debug_output = false;

        try {
                po::options_description desc("Allowed options");
                desc.add_options()
                        ("help,h", "produce help message")
                        ("version,v", "show version information")
                        ("debug,d", "show verbose debug output")
                        ("inputs,i", po::value< std::vector<std::string> >()->multitoken(), "input files")
                        ("output,o", po::value<std::string>(), "output file (output to stout if not given)")
                        ("from,f", po::value<double>(), "'from time' in seconds")
                        ("to,t", po::value<double>(), "'to time' in seconds")
                        ("last,l", po::value<double>(), "last x seconds (overrides from/to)")
                        ("maxid,m", po::value<NeuronID>(), "maximum neuron id to extract")
                        ;

                po::variables_map vm;
                po::store(po::parse_command_line(ac, av, desc), vm);
                po::notify(vm);

                if (vm.count("help")) {
                        std::cout << desc << "\n";
                        return 1;
                }

                if (vm.count("version")) {
                        AurynVersion build;
                        std::cout << "Auryn Binary Extract version "
                                 << build.version << "."
                                 << build.subversion << "."
                                 << build.revision_number << "\n";
                        return EXIT_SUCCESS;
                }

                if (vm.count("debug")) {
                        debug_output = true;
                }

                if (vm.count("inputs")) {
                         input_filenames = vm["inputs"].as< std::vector<std::string> >();
                }

                if (vm.count("output")) {
                        output_file_name = vm["output"].as<std::string>();
                }

                if (vm.count("from")) {
                        from_time = vm["from"].as<double>();
        }

        if (vm.count("to")) {
                        to_time = vm["to"].as<double>();
        }

        if (vm.count("last")) {
                        seconds_to_extract_from_end = vm["last"].as<double>();
        }

        if (vm.count("maxid")) {
                        maxid = vm["maxid"].as<NeuronID>();
        }
    }
    catch(std::exception& e) {
        std::cerr << "error: " << e.what() << "\n";
        return 1;
    }
    catch(...) {
        std::cerr << "Exception of unknown type!\n";
    }

        if ( debug_output )
                std::cout << "# Number of input files " << input_filenames.size() << std::endl;

        double last_time = 0.0;
        double dt = 0.0;

        if ( input_filenames.size() == 0 ) {
                std::cerr << "Missing input file." << std::endl;
                exit(EXIT_FAILURE);
        }

        for ( unsigned int i = 0 ; i < input_filenames.size() ; ++i ) {
                std::ifstream * tmp = new std::ifstream( input_filenames[i].c_str(), std::ios::binary );
                inputs.push_back(tmp);
                if (!(*tmp)) {
                        std::cerr << "Unable to open input file "
                                << input_filenames[i]
                                << std::endl;
                        exit(EXIT_FAILURE);
                }

                double tmp_last_time = 0;
                double tmp_dt = 0;
                AurynLong tmp_num_events = 0;
                read_header( tmp, tmp_dt, tmp_num_events, tmp_last_time, input_filenames[i] );

                if ( debug_output ) {
                        std::cerr << "# Last frame in file " << i << ": " << tmp_num_events << std::endl;
                }

                if ( dt == 0 ) {
                        dt = tmp_dt;
                } else {
                        if ( dt != tmp_dt ) { // should not happen
                                std::cerr << "Not all input file headers match." << std::endl;
                                exit(EXIT_FAILURE);
                        }
                }

                if ( tmp_last_time > last_time )
                        last_time = tmp_last_time;
        }


        if ( to_time < 0 ) {
                to_time = last_time;
        }

        if ( seconds_to_extract_from_end > 0 ) {
                from_time = to_time-seconds_to_extract_from_end;
        }

        if ( from_time < 0 ) from_time = 0.0 ;

        if ( from_time > to_time || from_time < 0 ) {
                std::cerr << "Times must be positive and start "
                        "time needs to be < to time." << std::endl;
                exit(EXIT_FAILURE);
        }

        // translate second times into auryn time
        AurynTime to_auryn_time = to_time/dt;


        if ( debug_output ) {
                std::cerr << "# Timestep: " << dt << std::endl;
                std::cerr << "# Maxid: " << maxid << std::endl;
                std::cerr << "# Sizeof SpikeEvent struct: " << sizeof(SpikeEvent_type) << std::endl;
                std::cerr << "# Time of last event in files: " << last_time << std::endl;
                std::cerr << "# From time: " << from_time << std::endl;
                std::cerr << "# To time: " << to_time << std::endl;
        }


        // set all streams to respetive start frame
        for ( unsigned int i = 0 ; i < inputs.size() ; ++i ) {
                // compute start and end frames
                AurynLong start_frame = find_frame(inputs[i], from_time/dt);

                // prepare input stream
                inputs[i]->seekg (start_frame*sizeof(SpikeEvent_type), inputs[i]->beg);
                inputs[i]->clear();
                if ( debug_output ) {
                        std::cerr << "# Start frame stream "
                                << i << ": "
                                << start_frame << std::endl;
                }
        }


        // read first frames from all files
        std::vector<SpikeEvent_type> frames(inputs.size());
        for ( unsigned int i = 0 ; i < frames.size() ; ++i ) {
                inputs[i]->read((char*)&frames[i], sizeof(SpikeEvent_type));
        }

        AurynTime time_reference = from_time/dt;
        int decimal_places = -std::log(dt)/std::log(10)+2;

        // open output filestream if needed
        std::ofstream of;
        bool write_to_stdout = true;
        if( !output_file_name.empty() ) {
                write_to_stdout = false;
                of.open( output_file_name.c_str(), std::ofstream::out );
                of << std::fixed << std::setprecision(decimal_places);
        }
        // sets output format to right number of decimal places
        std::cout << std::fixed << std::setprecision(decimal_places);

        while ( true ) {
                // find smallest time reference
                int current_stream = 0;
                AurynLong mintime = std::numeric_limits<AurynLong>::max();
                bool eofs = true;
                for ( unsigned int i = 0 ; i < frames.size() ; ++i ) {
                        eofs = eofs && inputs[i]->eof();
                        if ( inputs[i]->eof() ) continue;
                        if ( frames[i].time < mintime ) {
                                mintime = frames[i].time;
                                current_stream = i;
                        }
                }

                time_reference = mintime;
                if ( time_reference >= to_auryn_time || eofs ) break;

                if ( debug_output && false ) {
                        std::cout << "# current_stream " << current_stream << std::endl;
                        std::cout << "# time_reference " << time_reference << std::endl;
                }

                // output from next_stream
                while ( frames[current_stream].time <= time_reference && !inputs[current_stream]->eof() ) {
                        if ( frames[current_stream].neuronID < maxid) {
                                if ( write_to_stdout )
                                        std::cout << frames[current_stream].time*dt << " " << frames[current_stream].neuronID << "\n";
                                else
                                        of << frames[current_stream].time*dt << " " << frames[current_stream].neuronID << "\n";

                        }
                        inputs[current_stream]->read((char*)&frames[current_stream], sizeof(SpikeEvent_type));
                }
        }

        if ( !write_to_stdout )
                of.close();

        // close input streams
        for ( unsigned int i = 0 ; i < frames.size() ; ++i ) {
                inputs[i]->close();
        }

        return EXIT_SUCCESS;
}

Here is the call graph for this function:

read_header()

void read_header	(	std::ifstream *	input,
		double &	dt,
		AurynLong	num_events,
		double &	last_time,
		std::string	filename
	)

{
        // get length of the file
        SpikeEvent_type spike_data;
        input->seekg (0, input->end);
        num_events = input->tellg()/sizeof(SpikeEvent_type)-1;

        // read first entry to infer dt
        input->seekg (0, input->beg);
        input->read((char*)&spike_data, sizeof(SpikeEvent_type));
        dt = 1.0/spike_data.time;

        // do some version checking
        AurynVersion build;
        NeuronID tag = spike_data.neuronID;
        if ( tag/1000 != build.tag_binary_spike_monitor/1000 ) {
                std::cerr << "Header not recognized. "
                        "Not a binary Auryn monitor file?"
                         << std::endl;
                exit(EXIT_FAILURE);
        }

        if ( tag != build.tag_binary_spike_monitor ) {
                std::cerr << "# Warning: Either the Auryn version does not match "
                        "the version of this tool or this is not a spike "
                        "raster file." << std::endl;
                // TODO tell user if it is a state file
        }

        // read out last time
        input->seekg (num_events*sizeof(SpikeEvent_type), input->beg);
        input->read((char*)&spike_data, sizeof(SpikeEvent_type));
        last_time = (spike_data.time+1)*dt;
        // places last_time _behind_ the last time because we are the
        // exclusive interval end
}
