#include <iostream>
#include <iomanip>
#include <string>
#include <cmath>
#include <cstdlib>
#include <list>
#include <exception>
#include <limits>
#include <x86intrin.h>
#include <boost/mpi.hpp>
#include "Logger.h"

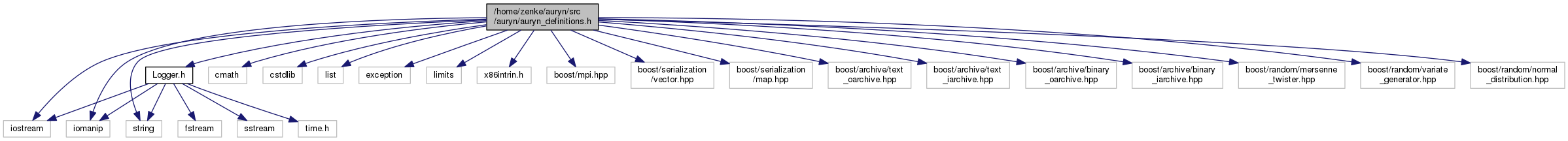

Include dependency graph for auryn_definitions.h:

Classes
struct	auryn::neuron_pair
	Struct that defines a pair of neurons in SparseConnection. More...

struct	auryn::pattern_member
	Struct used to define neuronal assembly patterns in SparseConnection. More...

struct	auryn::SpikeEvent_type
	Auryn spike event for binary monitors. More...

struct	auryn::StateValue_type
	Auryn spike event for binary monitors. More...

class	auryn::AurynOpenFileException

class	auryn::AurynMMFileException

class	auryn::AurynMatrixDimensionalityException

class	auryn::AurynMatrixComplexStateException

class	auryn::AurynMatrixBufferException

class	auryn::AurynMatrixPushBackException

class	auryn::AurynConnectionAllocationException

class	auryn::AurynMemoryAlignmentException

class	auryn::AurynDelayTooSmallException

class	auryn::AurynTimeOverFlowException

class	auryn::AurynStateVectorException

class	auryn::AurynGenericException

class	auryn::AurynVectorDimensionalityException

class	auryn::AurynSpikeAttributeSizeException

class	auryn::AurynVector< T, IndexType >
	Default Auryn vector template. More...

Namespaces
	auryn

Macros
#define	AURYN_CODE_USE_MPI
	Compiler flag that determines whether Auryn is built using MPI or not. More...

#define	CODE_ALIGNED_SIMD_INSTRUCTIONS
	Toggles between memory alignment for SIMD code. More...

#define	CODE_ACTIVATE_PREFETCHING_INTRINSICS
	Toggle prefetching in spike backpropagation. More...

#define	CODE_USE_SIMD_INSTRUCTIONS_EXPLICITLY
	Toggle between explicit implementation for SIMD operations in AurynVector classes. More...

#define	SIMD_NUM_OF_PARALLEL_FLOAT_OPERATIONS 4
	Use Intel Cilk Plus – only has an effect when CODE_USE_SIMD_INSTRUCTIONS_EXPLICITLY is enabled. More...

#define	MINDELAY 8
	Switches collection of timing stats in some classes like SyncBuffer and system. More...

#define	DEFAULT_MINDISTRIBUTEDSIZE 16
	Groups with an effective size smaller than this will not be distributed. More...

#define	DEFAULT_TRACE_MODEL Trace
	These precompiler directives are deprecated and should not be used any more. More...

#define	PRE_TRACE_MODEL Trace

Typedefs
typedef unsigned int	auryn::NeuronID
	NeuronID is an unsigned integeger type used to index neurons in Auryn. More...

typedef NeuronID	auryn::AurynInt

typedef unsigned int	auryn::StateID
	StateID is an unsigned integeger type used to index synaptic states in Auryn. More...

typedef unsigned long	auryn::AurynLong
	An unsigned long type used to count synapses or similar. More...

typedef NeuronID	auryn::AurynTime
	Defines Auryns discrete time unit of the System clock. Change to AurynLong if 120h of simtime are not sufficient. More...

typedef std::string	auryn::string
	Standard library string type which is imported into Auryn namespace. More...

typedef float	auryn::AurynFloat
	Low precision floating point datatype. More...

typedef double	auryn::AurynDouble
	Higher precision floating point datatype. More...

typedef AurynFloat	auryn::AurynWeight
	Unit of synaptic weights. More...

typedef AurynFloat	auryn::AurynState
	Type for Auryn state variables (default single precision since it needs to be compatible with auryn_vector_float). More...

typedef std::vector< NeuronID >	auryn::SpikeContainer
	Spike container type. Used for storing spikes. More...

typedef std::vector< float >	auryn::AttributeContainer
	Attribute container type. Used for storing spike attributes that are needed for efficient STP implementations. More...

typedef std::vector< pattern_member >	auryn::type_pattern

typedef AurynVectorFloat	auryn::AurynStateVector
	Defines AurynStateVector type as synonymous to AurynVectorFloat. More...

typedef AurynVector< AurynWeight, AurynLong >	auryn::AurynSynStateVector
	Defines AurynSynStateVector for synaptic states. More...

typedef AurynStateVector	auryn::auryn_vector_float
	Legacy definition of AurynStateVector. More...

typedef AurynVector< unsigned short, NeuronID >	auryn::auryn_vector_ushort
	Legacy definition of AurynVector<unsigned short> More...

Enumerations
enum	auryn::TransmitterType { auryn::GLUT, auryn::GABA, auryn::AMPA, auryn::NMDA, auryn::MEM, auryn::CURSYN }
	Specifies the different transmitter types that Auryn knows. More...

enum	auryn::StimulusGroupModeType { auryn::MANUAL, auryn::RANDOM, auryn::SEQUENTIAL, auryn::SEQUENTIAL_REV, auryn::STIMFILE }
	Specifies stimulus order used in StimulusGroup. More...

Functions
int	auryn::auryn_AlignOffset (const int N, const void *vp, const int inc, const int align)
	Determines memory alignment (adapted from ATLAS library) More...

NeuronID	auryn::calculate_vector_size (NeuronID i)
	Rounds vector size to multiple of four to allow using the SSE optimizations. More...

auryn_vector_float *	auryn::auryn_vector_float_alloc (const NeuronID n)

void	auryn::auryn_vector_float_free (auryn_vector_float *v)

void	auryn::auryn_vector_float_set_zero (auryn_vector_float *v)

void	auryn::auryn_vector_float_set_all (auryn_vector_float *v, AurynFloat x)

void	auryn::auryn_vector_float_copy (auryn_vector_float src, auryn_vector_float dst)
	Copies vector src to dst assuming they have the same size. More...

AurynFloat	auryn::auryn_vector_float_get (auryn_vector_float *v, const NeuronID i)

void	auryn::auryn_vector_float_set (auryn_vector_float *v, const NeuronID i, AurynFloat x)

AurynFloat *	auryn::auryn_vector_float_ptr (auryn_vector_float *v, const NeuronID i)

void	auryn::auryn_vector_float_mul (auryn_vector_float a, auryn_vector_float b)

void	auryn::auryn_vector_float_add_constant (auryn_vector_float *a, float b)
	Computes a := a + b. More...

void	auryn::auryn_vector_float_saxpy (const float a, auryn_vector_float x, auryn_vector_float y)

void	auryn::auryn_vector_float_scale (const float a, auryn_vector_float *b)

void	auryn::auryn_vector_float_clip (auryn_vector_float *v, const float a, const float b)

void	auryn::auryn_vector_float_clip (auryn_vector_float *v, const float a)

void	auryn::auryn_vector_float_add (auryn_vector_float a, auryn_vector_float b)
	Internal version of to add GSL vectors. More...

void	auryn::auryn_vector_float_sub (auryn_vector_float a, auryn_vector_float b)
	Computes a := a-b. More...

void	auryn::auryn_vector_float_sub (auryn_vector_float a, auryn_vector_float b, auryn_vector_float *r)
	Computes r := a-b. More...

auryn_vector_ushort *	auryn::auryn_vector_ushort_alloc (const NeuronID n)

void	auryn::auryn_vector_ushort_free (auryn_vector_ushort *v)

void	auryn::auryn_vector_ushort_set_zero (auryn_vector_ushort *v)

void	auryn::auryn_vector_ushort_set_all (auryn_vector_ushort *v, unsigned short x)

void	auryn::auryn_vector_ushort_copy (auryn_vector_ushort src, auryn_vector_ushort dst)

unsigned short	auryn::auryn_vector_ushort_get (auryn_vector_ushort *v, const NeuronID i)

void	auryn::auryn_vector_ushort_set (auryn_vector_ushort *v, const NeuronID i, unsigned short x)

unsigned short *	auryn::auryn_vector_ushort_ptr (auryn_vector_ushort *v, const NeuronID i)

Macro Definition Documentation

◆ AURYN_CODE_USE_MPI

#define AURYN_CODE_USE_MPI

Compiler flag that determines whether Auryn is built using MPI or not.

◆ CODE_ACTIVATE_PREFETCHING_INTRINSICS

#define CODE_ACTIVATE_PREFETCHING_INTRINSICS

Toggle prefetching in spike backpropagation.

Enables prefetching for spike backpropagation in some plastic connections.

◆ CODE_ALIGNED_SIMD_INSTRUCTIONS

#define CODE_ALIGNED_SIMD_INSTRUCTIONS

Toggles between memory alignment for SIMD code.

◆ CODE_USE_SIMD_INSTRUCTIONS_EXPLICITLY

#define CODE_USE_SIMD_INSTRUCTIONS_EXPLICITLY

Toggle between explicit implementation for SIMD operations in AurynVector classes.

Even if you do not enforce this here, the compiler might still choose to use them when mtune settings are set appropriately.

◆ DEFAULT_MINDISTRIBUTEDSIZE

#define DEFAULT_MINDISTRIBUTEDSIZE 16

Groups with an effective size smaller than this will not be distributed.

Furthermore groups that are distributed will not be cut up in chunks that are not smaller than this. This is done to reduce overhead

◆ DEFAULT_TRACE_MODEL

#define DEFAULT_TRACE_MODEL Trace

These precompiler directives are deprecated and should not be used any more.

◆ MINDELAY

#define MINDELAY 8

Switches collection of timing stats in some classes like SyncBuffer and system.

This is for profiling and since it impairs simulation performance, it is disabled by default.

System wide minimum delay which determines the sync interval between nodes in units of auryn_timestep.

Per default this is set to 8 which corresponds to 0.8ms with Auryn standard auryn_timestep timestep of 0.1ms. The resaon for setting it to 8 is that the compiler can then implement certain operations using MINDELAY with va bitshift instead of regular division. However, the effect of this is presumably negligible, but I am keeping this for hystoric reasons.

◆ PRE_TRACE_MODEL

#define PRE_TRACE_MODEL Trace

◆ SIMD_NUM_OF_PARALLEL_FLOAT_OPERATIONS

#define SIMD_NUM_OF_PARALLEL_FLOAT_OPERATIONS 4

Use Intel Cilk Plus – only has an effect when CODE_USE_SIMD_INSTRUCTIONS_EXPLICITLY is enabled.

Use this when using an Intel compiler and CPU. This is for instance what you want when running on Xeon Phi.

Sets the number of floats your CPU can handle in parallel using SIMD

Since Auryn currently only supports SSE and not the new AVX 512, this is typically 4.
