sim_background.cpp File Reference

Simulation code based on the code used in Zenke et al. (2013). More...

#include "auryn.h"

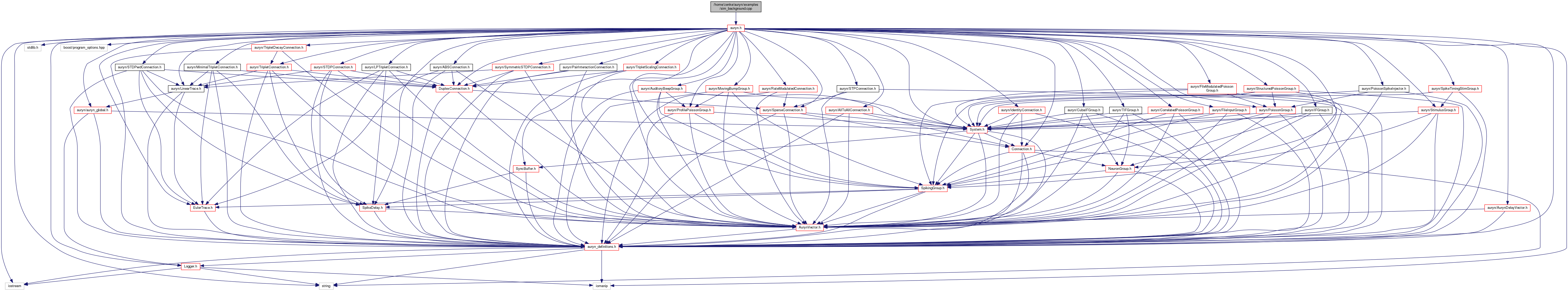

Include dependency graph for sim_background.cpp:

Macros
#define	N_REC_WEIGHTS   5000

Functions
int	main (int ac, char *av[])

Detailed Description

Simulation code based on the code used in Zenke et al. (2013).

Simulation code based on the code used in Zenke, F., Hennequin, G., and Gerstner, W. (2013). Synaptic Plasticity in Neural Networks Needs Homeostasis with a Fast Rate Detector. PLoS Comput Biol 9, e1003330. It simulates a network with 25k integrate and fire neurons and a minimal homeostatic triplet model with a sliding threshold.

Macro Definition Documentation

N_REC_WEIGHTS

#define N_REC_WEIGHTS   5000

Function Documentation

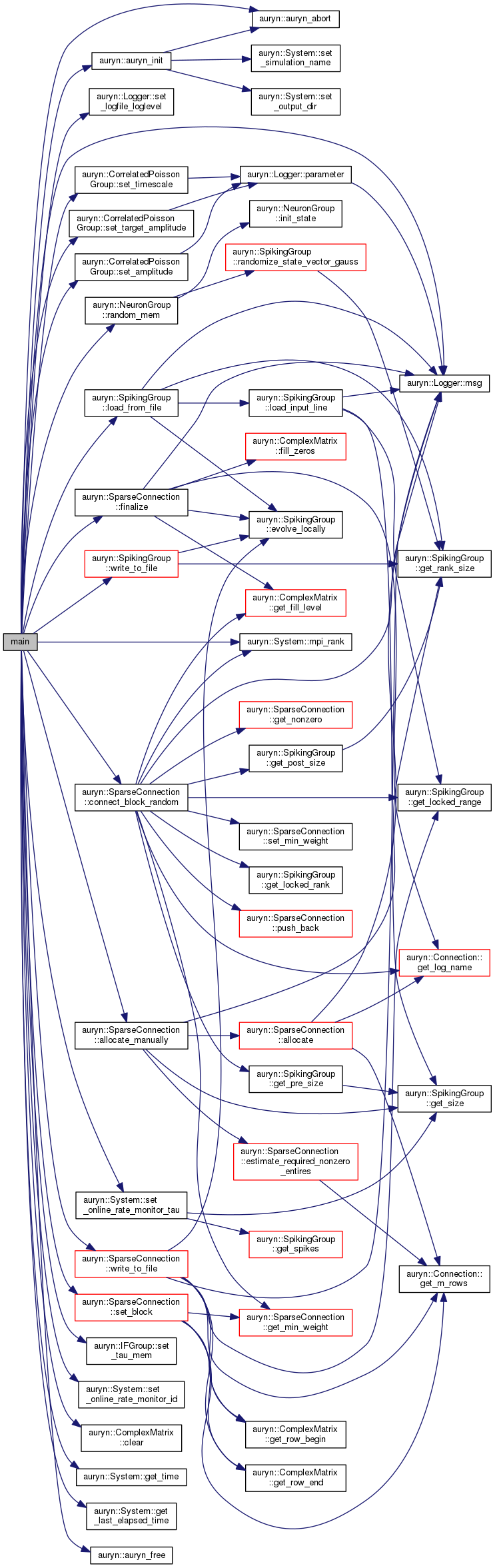

main()

int main	(	int	ac,
		char *	av[]
	)

{

        double w = 0.16;
        double w_ext = w;
        double wmax = 1.0;

        double w_ee = w;
        double w_ei = w;

        double gamma = 1.0;
        double w_ie = gamma;
        double w_ii = gamma;

        NeuronID ne = 20000;
        NeuronID ni = ne/4;


        double sparseness = 0.05;
        double kappa = 3.;

        bool quiet = false;
        bool verbose = false;
        bool scaling = false;
        bool wmatdump = false;
        bool loadbalance = false;

        bool wall = false;

        double tau_chk = 100e-3;
        double simtime = 3600.;
        double stimtime = simtime;
        double wmat_interval = 600.;

        double ampa_nmda_ratio = 1.0;
        double wstim = 0.1;

        NeuronID psize = 200;
        NeuronID hsize = 100;
        NeuronID offset = 0;

        std::string patfile = "";
        std::string prefile = "";
        std::string currentfile = "";

        double stimfreq = 10;

        bool corr = false;
        int  plen = 3;
        int  hlen = 3;

        double ampl = 1.0;
        bool recall = false;
        bool decay = false;
        bool adapt = false;
        bool noisyweights = false;
        bool switchweights = false;
        bool ei_plastic = false;

        double bg_rate = 2;
        bool fast = false;
        AurynWeight wdecay = w;
        double tau_decay = 3600.;

        double tau_hom = 50.;
        double eta = 1;
        double onperiod = 2;
        double offperiod = 30;
        double scale = 1;

        int n_strengthen = 0;

        std::vector<Connection*> corr_connections;
        std::string dir = ".";
        std::string stimfile = "";
        std::string label = "";
        std::string infilename = "";

        const char * file_prefix = "bg2";
        char strbuf [255];
        std::string msg;

        int errcode = 0;

    try {

        po::options_description desc("Allowed options");
        desc.add_options()
            ("help", "produce help message")
            ("quiet", "quiet mode")
            ("verbose", "verbose mode")
            ("scaling", "scaling mode")
            ("balance", "activate load balance")
            ("load", po::value<std::string>(), "input weight matrix")
            ("patfile", po::value<std::string>(), "pattern file for StimulusGroup")
            ("prefile", po::value<std::string>(), "pattern file for loading patterns")
            ("onperiod", po::value<double>(), "mean stimulus on period")
            ("offperiod", po::value<double>(), "mean stimulus off period")
            ("wmat", "wmat dump mode")
            ("eta", po::value<double>(), "learning rate")
            ("bgrate", po::value<double>(), "PoissonGroup external firing rate")
            ("sparseness", po::value<double>(), "overall network sparseness")
            ("scale", po::value<double>(), "learning rate")
            ("tau_hom", po::value<double>(), "homeostatic time constant")
            ("kappa", po::value<double>(), "target rate")
            ("simtime", po::value<double>(), "simulation time")
            ("dir", po::value<std::string>(), "output dir")
            ("label", po::value<std::string>(), "output label")
            ("wee", po::value<double>(), "wee")
            ("wei", po::value<double>(), "wei")
            ("wie", po::value<double>(), "wie")
            ("wii", po::value<double>(), "wii")
            ("wmax", po::value<double>(), "wmax")
            ("ampa", po::value<double>(), "ampa nmda ratio")
            ("strengthen", po::value<int>(), "connections to strengthen by 10")
            ("ne", po::value<int>(), "no of exc units")
            ("stimfile", po::value<std::string>(), "stimulus ras file")
            ("wstim", po::value<double>(), "weight of stimulus connections")
            ("stimtime", po::value<double>(), "time of stimulus on")
            ("decay", "decay triplet connections")
            ("corr", "add correlated inputs")
            ("ampl", po::value<double>(), "recall stim amplitude")
            ("psize", po::value<int>(), "block size for correlated inputs")
            ("plen", po::value<int>(), "number of blocks feed-forward")
            ("hsize", po::value<int>(), "block size for correlated inputs (hebbian assembly)")
            ("hlen", po::value<int>(), "number of blocks Hebbian")
            ("offset", po::value<int>(), " offset for corr stim")
            ("recall", "add correlated inputs to first patterns")
            ("stimfreq", po::value<double>(), "CorrelatedPoissonGroup frequency default = 100")
            ("dconstant", po::value<double>(), "decay time constant for decaying triplet connections")
            ("wdecay", po::value<double>(), "wdecay for decay triplet connections")
            ("chk", po::value<double>(), "checker time constant")
            ("adapt", "adapting excitatory neurons")
            ("wall", "enable monitoring of wall clock time")
            ("noisyweights", "enables noisyweights for mean field checks")
            ("switchweights", "switches first weights in each weight matrix")
            ("fast", "turn off some of the monitors to run faster")
            ("eiplastic", "make EI connection plastic")
        ;

        po::variables_map vm;
        po::store(po::parse_command_line(ac, av, desc), vm);
        po::notify(vm);

        if (vm.count("help")) {
                        std::cout << desc << "\n";
            return 1;
        }

        if (vm.count("quiet")) {
                        quiet = true;
        }

        if (vm.count("verbose")) {
                        verbose = true;
        }

        if (vm.count("scaling")) {
                        scaling = true;
        }

        if (vm.count("balance")) {
                        std::cout << "load balancing active" << std::endl;
                        loadbalance = true;
        }

        if (vm.count("load")) {
                        std::cout << "load from matrix "
                 << vm["load"].as<std::string>() << ".\n";
                        infilename = vm["load"].as<std::string>();
        }

        if (vm.count("patfile")) {
                        std::cout << "PatternFile is "
                 << vm["patfile"].as<std::string>() << ".\n";
                        patfile = vm["patfile"].as<std::string>();
        }

        if (vm.count("prefile")) {
                        std::cout << "Preload patternfile is "
                 << vm["prefile"].as<std::string>() << ".\n";
                        prefile = vm["prefile"].as<std::string>();
        }

        if (vm.count("wmat")) {
                        wmatdump = true;
                        std::cout << "wmat dump mode" << std::endl;
        }

        if (vm.count("onperiod")) {
                        std::cout << "onperiod set to "
                 << vm["onperiod"].as<double>() << ".\n";
                        onperiod = vm["onperiod"].as<double>();
        }

        if (vm.count("offperiod")) {
                        std::cout << "offperiod set to "
                 << vm["offperiod"].as<double>() << ".\n";
                        offperiod = vm["offperiod"].as<double>();
        }

        if (vm.count("eta")) {
                        std::cout << "eta set to "
                 << vm["eta"].as<double>() << ".\n";
                        eta = vm["eta"].as<double>();
        }

        if (vm.count("bgrate")) {
                        std::cout << "bgrate set to "
                 << vm["bgrate"].as<double>() << ".\n";
                        bg_rate = vm["bgrate"].as<double>();
        }

        if (vm.count("sparseness")) {
                        std::cout << "sparseness set to "
                 << vm["sparseness"].as<double>() << ".\n";
                        sparseness = vm["sparseness"].as<double>();
        }

        if (vm.count("scale")) {
                        std::cout << "scale set to "
                 << vm["scale"].as<double>() << ".\n";
                        scale = vm["scale"].as<double>();
        }

        if (vm.count("tau_hom")) {
                        std::cout << "tau_hom set to "
                 << vm["tau_hom"].as<double>() << ".\n";
                        tau_hom = vm["tau_hom"].as<double>();
        }

        if (vm.count("kappa")) {
                        std::cout << "kappa set to "
                 << vm["kappa"].as<double>() << ".\n";
                        kappa = vm["kappa"].as<double>();
        }

        if (vm.count("simtime")) {
                        std::cout << "simtime set to "
                 << vm["simtime"].as<double>() << ".\n";
                        simtime = vm["simtime"].as<double>();
                        stimtime = simtime;
        }

        if (vm.count("dir")) {
                        std::cout << "dir set to "
                 << vm["dir"].as<std::string>() << ".\n";
                        dir = vm["dir"].as<std::string>();
        }

        if (vm.count("label")) {
                        std::cout << "label set to "
                 << vm["label"].as<std::string>() << ".\n";
                        label = vm["label"].as<std::string>();
        }

        if (vm.count("wee")) {
                        std::cout << "wee set to "
                 << vm["wee"].as<double>() << ".\n";
                        w_ee = vm["wee"].as<double>();
        }

        if (vm.count("wei")) {
                        std::cout << "wei set to "
                 << vm["wei"].as<double>() << ".\n";
                        w_ei = vm["wei"].as<double>();
        }

        if (vm.count("wie")) {
                        std::cout << "wie set to "
                 << vm["wie"].as<double>() << ".\n";
                        w_ie = vm["wie"].as<double>();
        }

        if (vm.count("wii")) {
                        std::cout << "wii set to "
                 << vm["wii"].as<double>() << ".\n";
                        w_ii = vm["wii"].as<double>();
        }

        if (vm.count("wmax")) {
                        std::cout << "wmax set to "
                 << vm["wmax"].as<double>() << ".\n";
                        wmax = vm["wmax"].as<double>();
        }

        if (vm.count("ampa")) {
           std::cout << "ampa set to "
                 << vm["ampa"].as<double>() << ".\n";
                        ampa_nmda_ratio = vm["ampa"].as<double>();
        }

        if (vm.count("strengthen")) {
           std::cout << "strengthen set to "
                 << vm["strengthen"].as<int>() << ".\n";
                        n_strengthen = vm["strengthen"].as<int>();
        }

        if (vm.count("ne")) {
           std::cout << "ne set to "
                 << vm["ne"].as<int>() << ".\n";
                        ne = vm["ne"].as<int>();
                        ni = ne/4;
        }

        if (vm.count("stimfile")) {
           std::cout << "stimfile set to "
                 << vm["stimfile"].as<std::string>() << ".\n";
                        stimfile = vm["stimfile"].as<std::string>();
        }

        if (vm.count("wstim")) {
           std::cout << "wstim set to "
                 << vm["wstim"].as<double>() << ".\n";
                        wstim = vm["wstim"].as<double>();
        }

        if (vm.count("stimtime")) {
           std::cout << "stimtime set to "
                 << vm["stimtime"].as<double>() << ".\n";
                        stimtime = vm["stimtime"].as<double>();
        }

        if (vm.count("corr")) {
           std::cout << "enabling corr " << std::endl;
                        corr = true;
        }

        if (vm.count("ampl")) {
           std::cout << "ampl set to "
                 << vm["ampl"].as<double>() << ".\n";
                        ampl = vm["ampl"].as<double>();
        }

        if (vm.count("psize")) {
           std::cout << "psize set to "
                 << vm["psize"].as<int>() << ".\n";
                        psize = vm["psize"].as<int>();
        }

        if (vm.count("plen")) {
           std::cout << "plen set to "
                 << vm["plen"].as<int>() << ".\n";
                        plen = vm["plen"].as<int>();
        }

        if (vm.count("hsize")) {
           std::cout << "hsize set to "
                 << vm["hsize"].as<int>() << ".\n";
                        hsize = vm["hsize"].as<int>();
        }

        if (vm.count("hlen")) {
           std::cout << "hlen set to "
                 << vm["hlen"].as<int>() << ".\n";
                        hlen = vm["hlen"].as<int>();
        }

        if (vm.count("offset")) {
           std::cout << "offset set to "
                 << vm["offset"].as<int>() << ".\n";
                        offset = vm["offset"].as<int>();
        }

        if (vm.count("recall")) {
           std::cout << "enabling recall " << std::endl;
                        recall = true;
        }

        if (vm.count("stimfreq")) {
           std::cout << "stimfreq set to "
                 << vm["stimfreq"].as<double>() << ".\n";
                        stimfreq = vm["stimfreq"].as<double>();
        }

        if (vm.count("decay")) {
           std::cout << "weight decay on " << std::endl;
                        decay = true;
        }

        if (vm.count("dconstant")) {
           std::cout << "dconstant set to "
                 << vm["dconstant"].as<double>() << ".\n";
                        tau_decay = vm["dconstant"].as<double>();
        }

        if (vm.count("wdecay")) {
           std::cout << "wdecay set to "
                 << vm["wdecay"].as<double>() << ".\n";
                        wdecay = vm["wdecay"].as<double>();
        }

        if (vm.count("chk")) {
           std::cout << "chk set to "
                 << vm["chk"].as<double>() << ".\n";
                        tau_chk = vm["chk"].as<double>();
        }

        if (vm.count("adapt")) {
           std::cout << "adaptation on " << std::endl;
                        adapt = true;
        }

        if (vm.count("wall")) {
           std::cout << "real time wall clock monitoring enabled " << std::endl;
                        wall = true;
        }

        if (vm.count("noisyweights")) {
           std::cout << "noisyweights on " << std::endl;
                        noisyweights = true;
        }

        if (vm.count("switchweights")) {
           std::cout << "switchweights on " << std::endl;
                        switchweights = true;
        }

        if (vm.count("fast")) {
           std::cout << "fast on " << std::endl;
                        fast = true;
        }

        if (vm.count("eiplastic")) {
           std::cout << "eiplastic on " << std::endl;
                        ei_plastic = true;
        }
    }
    catch(std::exception& e) {
                std::cerr << "error: " << e.what() << "\n";
        return 1;
    }
    catch(...) {
                std::cerr << "Exception of unknown type!\n";
    }

        if (scale != 1.) {
                eta *= scale;
                tau_hom /= scale;
                simtime /= scale;
                std::cout << "scaled by " << scale << std::endl;
        }

        double primetime = 3*tau_hom;


        sprintf(strbuf, "%s_e%.2et%.2f%s", file_prefix, eta, tau_hom, label.c_str());
        std::string logfile_prefix = strbuf;

        auryn_init(ac, av, dir, "sim_background", logfile_prefix);

        logger->set_logfile_loglevel( INFO );
        if ( verbose ) logger->set_logfile_loglevel( EVERYTHING );


        if (!infilename.empty()) {
                std::stringstream iss;
                iss << infilename << "." << sys->mpi_rank();
                infilename = iss.str();
        }

        logger->msg("Setting up neuron groups ...",PROGRESS,true);


        NeuronGroup * neurons_e;
        if ( adapt ) {
                neurons_e = new AIFGroup(ne);
                ((AIFGroup*)neurons_e)->set_ampa_nmda_ratio(ampa_nmda_ratio);
                ((AIFGroup*)neurons_e)->dg_adapt1=1.0;
        } else {
                if ( loadbalance )
                        neurons_e = new IFGroup(ne);
                else
                        neurons_e = new IFGroup(ne);
                ((IFGroup*)neurons_e)->set_ampa_nmda_ratio(ampa_nmda_ratio);
        }
        IFGroup * neurons_i = new IFGroup(ni);

        // initialize membranes
        neurons_i->set_tau_mem(10e-3);
        neurons_e->random_mem(-60e-3,10e-3);
        neurons_i->random_mem(-60e-3,10e-3);

        ((IFGroup*)neurons_i)->set_ampa_nmda_ratio(ampa_nmda_ratio);


        SpikingGroup * poisson = new PoissonGroup(2500,bg_rate);
        SparseConnection * con_exte = new SparseConnection(poisson, neurons_e, w_ext, sparseness, GLUT);

        msg = "Setting up I connections ...";
        logger->msg(msg,PROGRESS,true);
        SparseConnection * con_ie = new SparseConnection(neurons_i,neurons_e,
                        w_ie,sparseness,GABA);
        SparseConnection * con_ii = new SparseConnection(neurons_i,neurons_i,
                        w_ii,sparseness,GABA);

        msg =  "Setting up E connections ...";
        logger->msg(msg,PROGRESS,true);
        SparseConnection * con_ei;
        if ( !ei_plastic ) {
                con_ei = new SparseConnection(neurons_e,neurons_i,
                                w_ei, sparseness,GLUT);
        } else {
                if (infilename.empty()) {
                        con_ei = new TripletConnection(neurons_e,neurons_i,
                                w_ei, sparseness,
                                tau_hom, eta, kappa, wmax, GLUT);
                } else {
                        std::string str;
                        str = infilename;
                        str += ".ei.wmat";
                        std::stringstream oss;
                        oss << "Loading weight matrix from " << str;
                        logger->msg(oss.str(),PROGRESS,true);
                        con_ei = new TripletConnection(neurons_e,neurons_i,
                                str.c_str(),
                                tau_hom, eta, kappa, wmax, GLUT);
                }
        }

        TripletConnection * con_ee;

        if (infilename.empty()) {
                if (decay)
                        con_ee = new TripletDecayConnection(neurons_e,neurons_e,
                                w_ee, sparseness,
                                tau_hom, eta, tau_decay,
                                kappa, wdecay, wmax, GLUT);
                else
                        con_ee = new TripletConnection(neurons_e,neurons_e,
                                w_ee, sparseness,
                                tau_hom, eta, kappa, wmax, GLUT);

                // con_ee->set_min_weight(wmin);
                if ( noisyweights )
                        con_ee->random_data(w_ee,w_ee/4);
                for ( int i = 0 ; i < n_strengthen ; ++i ) {
                        con_ee->set_data(i,i*(wmax/n_strengthen));
                }
        }
        else {
                std::string str;
                str = infilename;
                str += ".wmat";
                std::stringstream oss;
                oss << "Loading weight matrix from " << str;
                logger->msg(oss.str(),PROGRESS,true);
                if (decay)
                        con_ee = new TripletDecayConnection(neurons_e,neurons_e,
                                str.c_str(),tau_hom,eta,tau_decay,kappa,wdecay,wmax,GLUT);
                else
                        con_ee = new TripletConnection(neurons_e,neurons_e,
                                str.c_str(),tau_hom,eta,kappa,wmax,GLUT);


                sprintf(strbuf, "%s.e.nstate", infilename.c_str());
                neurons_e->load_from_file(strbuf);
                sprintf(strbuf, "%s.i.nstate", infilename.c_str());
                neurons_i->load_from_file(strbuf);

                // primetime = 0;
        }

        // SparseConnection * con_exti = new SparseConnection(sys, poisson, neurons_i, w_ext, sparseness, GLUT);

        msg = "Initializing traces ...";
        logger->msg(msg,PROGRESS,true);
        con_ee->set_hom_trace(kappa);
        con_ee->seed(23);

        // TODO
        // con_ee->w->set_col(0,2*w_ee);

        msg = "Setting up monitors ...";
        logger->msg(msg,PROGRESS,true);

        if (wmatdump) {
                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.weight", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
                WeightMatrixMonitor * wmatmon = new WeightMatrixMonitor( con_ee, strbuf , wmat_interval );
        }

        if ( !fast ) {
                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.syn", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
                WeightMonitor * wmon = new WeightMonitor( con_ee, strbuf, 10 );
                for ( int i = 0 ; i < 5 ; ++i ) {
                        for ( int j = 0 ; j < 5 ; ++j ) {
                                std::vector<neuron_pair> sublist = con_ee->get_block(i*psize,(i+1)*psize,j*psize,(j+1)*psize);
                                sublist.resize(50); // only record a maximum of 50 connections from each block
                                wmon->add_to_list(sublist);
                        }
                }

                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.ras", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank(), 'e');
                SpikeMonitor * smon_e = new SpikeMonitor( neurons_e, strbuf , 2500);

                // sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.ras", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank(), 'p');
                // SpikeMonitor * smon_p = new SpikeMonitor( poisson, strbuf , 2500);
        }

        sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.prate", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank(), 'e');
        PopulationRateMonitor * pmon_e = new PopulationRateMonitor( neurons_e, strbuf, 1.0 );

        if ( wall ) {
                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.rt", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
                RealTimeMonitor * rtmon = new RealTimeMonitor( strbuf );
        }

        // sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.prate", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank(), 'i');
        // PopulationRateMonitor * pmon_i = new PopulationRateMonitor( neurons_i, strbuf, 1.0 );

        // sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.mem", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank(), 'e');
        // VoltageMonitor * vmon_e = new VoltageMonitor( neurons_e, 33, strbuf );

        // sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.ras", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank(), 'i');
        // SpikeMonitor * smon_i = new SpikeMonitor( neurons_i, strbuf , 500);

        RateChecker * chk = new RateChecker( neurons_e , 0.1 , 20.*kappa , tau_chk);
        // To add a weight checker uncomment the following line
        // WeightChecker * wchk = new WeightChecker( con_ee, 0.159, 0.161 );

        // Use the same time constant for the online rate estimate in the progress bar
        sys->set_online_rate_monitor_id(0);
        sys->set_online_rate_monitor_tau(tau_chk);



        if ( scaling && (errcode==0) ) {
                std::stringstream oss;
                oss << "Changing cell input ... ";
                logger->msg(oss.str(),PROGRESS,true);

                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.pat", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
                PatternMonitor * patmon = new PatternMonitor(neurons_e,strbuf,patfile.c_str(), 10, 1.);
                PatternStimulator * patstim = new PatternStimulator(neurons_e,currentfile.c_str(),patfile.c_str());

                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.scal", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
                WeightMonitor * wmon_scal = new WeightMonitor( con_ee, 0, 0, strbuf, 1, ELEMENTLIST);
                wmon_scal->add_to_list( con_ee->get_pre_partners(0) );
                wmon_scal->add_to_list( con_ee->get_pre_partners(10) );

        }

        // if ( corr ) {
        //      sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.pat", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank(), 'c');
        //      PatternMonitor * pmon_c = new PatternMonitor( neurons_e, strbuf,corr_pat_file.c_str() );
        // }

        const double amplitude_fwd = 9.0*ampl;
        const double amplitude_heb = 3.0*ampl;

        CorrelatedPoissonGroup * corr_e;
        CorrelatedPoissonGroup * corr_e2;

        NeuronID extsize = 500;
        double strength = 0.2;

        if ( corr ) {

                std::stringstream oss;
                oss << "Activating correlated input ... ";
                logger->msg(oss.str(),PROGRESS,true);

                if (eta > 0)
                        con_ee->stdp_active = true;


                if ( psize*plen ) {
                        corr_e = new CorrelatedPoissonGroup(extsize*plen,stimfreq,extsize,10e-3);
                        corr_e->set_amplitude(amplitude_fwd);
                        corr_e->set_timescale(5e-3);
                        // IdentityConnection * con_corr_e = new IdentityConnection(corr_e,neurons_e,w);
                        SparseConnection * con_corr_e = new SparseConnection(corr_e,neurons_e,GLUT);
                        con_corr_e->allocate_manually( plen*extsize*psize*sparseness*1.05 );
                        con_corr_e->w->clear();
                        for ( int i = 0 ; i < plen ; ++i )
                                con_corr_e->connect_block_random(w,sparseness,(i)*extsize,offset+(i+1)*extsize,(i)*psize,offset+(i+1)*psize);
                        con_corr_e->finalize();
                        corr_connections.push_back(con_corr_e);
                        SparseConnection * con_corr_i = new SparseConnection(corr_e,neurons_i,w*strength,sparseness*plen*psize/ni,GLUT);

                        // set up Weight monitor
                        sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.ras", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank(), 'c');
                        SpikeMonitor * smon_c = new SpikeMonitor( corr_e, strbuf , psize );
                }

                if ( hsize*hlen ) {
                        corr_e2 = new CorrelatedPoissonGroup(extsize*hlen,stimfreq,extsize,10);
                        corr_e2->set_amplitude(amplitude_heb);
                        corr_e2->set_timescale(100e-3);
                        SparseConnection * con_corr_e2 = new SparseConnection(corr_e2,neurons_e,GLUT);
                        con_corr_e2->allocate_manually( hlen*extsize*hsize*sparseness*1.05 );
                        con_corr_e2->w->clear();
                        for ( int i = 0 ; i < hlen ; ++i )
                                con_corr_e2->connect_block_random(w,sparseness,(i)*extsize,(i+1)*extsize,offset+(i)*hsize+plen*psize,offset+(i+1)*hsize+plen*psize);
                        con_corr_e2->finalize();
                        corr_connections.push_back(con_corr_e2);
                        SparseConnection * con_corr_i2 = new SparseConnection(corr_e2,neurons_i,w*strength,sparseness*hlen*hsize/ni,GLUT);
                }

                // disabling external random input
                con_exte->set_block(0,2500,0,plen*psize+hlen*hsize,0.0);

        } else {
                if ( recall ) {

                        std::stringstream oss;
                        oss << "Activating recall input ... ";
                        logger->msg(oss.str(),PROGRESS,true);

                        if ( psize*plen ) {
                                corr_e = new CorrelatedPoissonGroup(extsize*plen,stimfreq,extsize,10e-3);
                                corr_e->set_amplitude(amplitude_fwd);
                                corr_e->set_timescale(5e-3);
                                // IdentityConnection * con_corr_e = new IdentityConnection(corr_e,neurons_e,w);
                                SparseConnection * con_corr_e = new SparseConnection(corr_e,neurons_e,GLUT);
                                con_corr_e->allocate_manually( plen*extsize*psize*sparseness*1.05 );
                                con_corr_e->w->clear();
                                for ( int i = 0 ; i < plen ; ++i )
                                        con_corr_e->connect_block_random(w,sparseness,(i)*extsize,offset+(i+1)*extsize,(i)*psize,offset+(i+1)*psize);
                                con_corr_e->finalize();
                                corr_connections.push_back(con_corr_e);
                                // SparseConnection * con_corr_i = new SparseConnection(corr_e,neurons_i,w*strength,sparseness*plen*psize/ni,GLUT);

                                // set up Weight monitor
                                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.ras", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank(), 'c');
                                SpikeMonitor * smon_c = new SpikeMonitor( corr_e, strbuf , psize );
                        }

                        if ( hsize*hlen ) {
                                corr_e2 = new CorrelatedPoissonGroup(extsize*hlen,stimfreq,extsize,10);
                                corr_e2->set_amplitude(amplitude_heb);
                                corr_e2->set_timescale(100e-3);
                                SparseConnection * con_corr_e2 = new SparseConnection(corr_e2,neurons_e,GLUT);
                                con_corr_e2->allocate_manually( hlen*extsize*hsize*sparseness*1.05 );
                                con_corr_e2->w->clear();
                                for ( int i = 0 ; i < hlen ; ++i )
                                        con_corr_e2->connect_block_random(w,sparseness,(i)*extsize,(i+1)*extsize,offset+(i)*hsize+plen*psize,offset+(i+1)*hsize+plen*psize);
                                con_corr_e2->finalize();
                                corr_connections.push_back(con_corr_e2);
                                // SparseConnection * con_corr_i2 = new SparseConnection(corr_e2,neurons_i,w*strength,sparseness*hlen*hsize/ni,GLUT);
                        }

                        // disabling external random input
                        // con_exte->set_block(0,2500,psize,2*psize,0.0);
                }
        }

// preload patterns
if ( prefile != "" ) {
        logger->msg("Preloading patterns ...",PROGRESS,true);
        // con_ee->random_data(w_ee,w_ee);
        con_ee->load_patterns(prefile, wmax, true, false);
        // con_ee->sparse_set_data(0.9,0);
}

// adding patterns
if ( patfile != "" ) {
        logger->msg("Preparing stimulus ...",PROGRESS,true);
        sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.stim", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
        StimulusGroup * stimgroup = new StimulusGroup(ne,patfile,strbuf);
        stimgroup->set_mean_on_period(onperiod);
        stimgroup->set_mean_off_period(offperiod);
        IdentityConnection * con_stim = new IdentityConnection(stimgroup,neurons_e,w_ext);
}

        if (primetime>0) {
                msg = "Priming ...";
                logger->msg(msg,PROGRESS,true);
                con_ee->stdp_active = false;
                sys->run(primetime,true);
        }

        if ( corr || recall ) {
                if ( psize*plen )
                        corr_e->set_target_amplitude(amplitude_fwd);
                if ( hsize*hlen )
                        corr_e2->set_target_amplitude(amplitude_heb);
        }

        logger->msg("Simulating ...",PROGRESS,true);
        if (eta > 0) {
                con_ee->stdp_active = true;
        }

        if (!sys->run(simtime,true))
                        errcode = 1;



        if (!fast) {
                logger->msg("Saving neurons state ...",PROGRESS,true);
                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.e.nstate", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
                neurons_e->write_to_file(strbuf);
                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.i.nstate", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
                neurons_i->write_to_file(strbuf);

                logger->msg("Saving weight matrix ...",PROGRESS,true);
                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.wmat", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
                con_ee->write_to_file(strbuf);

                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.ei.wmat", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
                con_ei->write_to_file(strbuf);

                for ( int i = 0 ; i < corr_connections.size() ; ++i ) {
                        sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%d.wmat", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), i, sys->mpi_rank());
                        corr_connections[i]->write_to_file(strbuf);
                }
        }

        // save lifetime
        sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.lifetime", dir.c_str(), file_prefix, eta, tau_hom, label.c_str(), sys->mpi_rank());
        std::ofstream killfile;
        killfile.open(strbuf);
        killfile << sys->get_time()-primetime << std::endl;
        killfile.close();


        if ( sys->mpi_rank() == 0 ) {
                logger->msg("Saving elapsed time ..." ,PROGRESS,true);
                char filenamebuf [255];
                sprintf(filenamebuf, "%s/elapsed.dat", dir.c_str());
                std::ofstream timefile;
                timefile.open(filenamebuf);
                timefile << sys->get_last_elapsed_time() << std::endl;
                timefile.close();
        }


        if (errcode) {
                auryn_abort(errcode);
        }

        logger->msg("Freeing ...",PROGRESS,true);
        auryn_free();

        return errcode;
}

Here is the call graph for this function:
