sim_bg_scaling.cpp File Reference

#include "auryn.h"

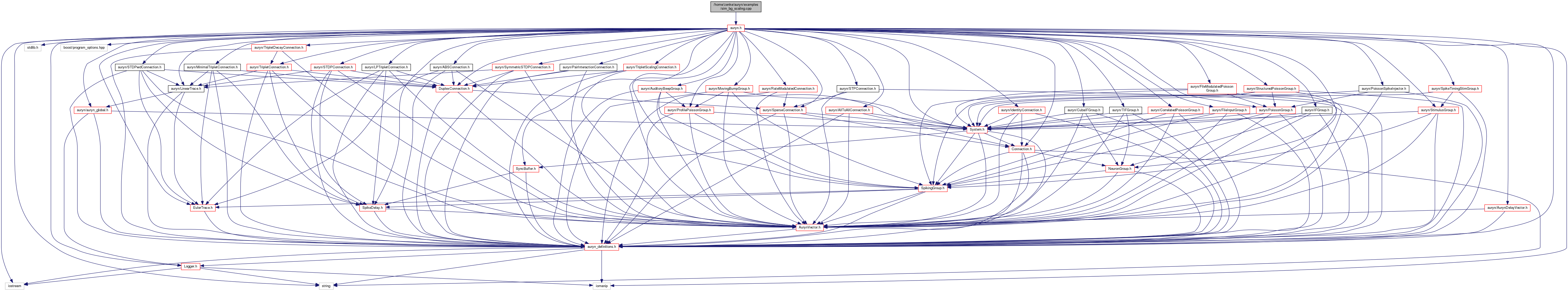

Include dependency graph for sim_bg_scaling.cpp:

Macros
#define	N_REC_WEIGHTS   5000
	Example simulation that simulates a balanced network with triplet STDP with homeostatic scaling. More...
#define	NE   20000
#define	NI   5000

Functions
int	main (int ac, char *av[])

Macro Definition Documentation

N_REC_WEIGHTS

#define N_REC_WEIGHTS   5000

Example simulation that simulates a balanced network with triplet STDP with homeostatic scaling.

This simulation code is based on the code used in Zenke, F., Hennequin, G., and Gerstner, W. (2013). Synaptic Plasticity in Neural Networks Needs Homeostasis with a Fast Rate Detector. PLoS Comput Biol 9, e1003330.

NE

#define NE   20000

NI

#define NI   5000

Function Documentation

main()

int main	(	int	ac,
		char *	av[]
	)

{

        double w = 0.16;
        double w_ext = w;
        double wmax = 1;

        double w_ee = w;
        double w_ei = w;

        double gamma = 1.0;
        double w_ie = gamma;
        double w_ii = gamma;


        double sparseness = 0.05;
        double kappa = 3;

        bool quiet = false;
        bool wmatdump = false;
        double simtime = 3600.;
        double stimtime = simtime;
        double wmat_interval = 600.;
        double wstim = 0.1;

        double stimfreq = 100;

        bool corr = false;
        bool adapt = false;
        bool noisyweights = false;
        bool fast = false;
        AurynWeight wdecay = w;

        double tau_hom = 50.;
        double eta = 1;
        double beta_scaling = 1;

        int n_strengthen = 0;

        string dir = "/tmp";
        string stimfile = "";
        string label = "";
        string infilename = "";

        const char * file_prefix = "bg_scaling";
        char strbuf [255];
        string msg;

        int errcode = 0;

    try {

        po::options_description desc("Allowed options");
        desc.add_options()
            ("help", "produce help message")
            ("quiet", "quiet mode")
            ("load", po::value<string>(), "input weight matrix")
            ("wmat", "wmat dump mode")
            ("eta", po::value<double>(), "learning rate")
            ("scaling", po::value<double>(), "learning rate")
            ("tau_hom", po::value<double>(), "homeostatic time constant")
            ("kappa", po::value<double>(), "target rate")
            ("simtime", po::value<double>(), "simulation time")
            ("dir", po::value<string>(), "output dir")
            ("label", po::value<string>(), "output label")
            ("we", po::value<double>(), "we")
            ("strengthen", po::value<int>(), "connections to strengthen by 10")
            ("stimfile", po::value<string>(), "stimulus ras file")
            ("wstim", po::value<double>(), "weight of stimulus connections")
            ("stimtime", po::value<double>(), "time of stimulus on")
            ("adapt", "adapting excitatory neurons")
            ("corr", "add correlated inputs")
            ("stimfreq", po::value<double>(), "CorrelatedPoissonGroup frequency default = 100")
            ("noisyweights", "enables noisyweights for mean field checks")
            ("fast", "turn off some of the monitors to run faster")
        ;

        po::variables_map vm;
        po::store(po::parse_command_line(ac, av, desc), vm);
        po::notify(vm);

        if (vm.count("help")) {
            std::cout << desc << "\n";
            return 1;
        }

        if (vm.count("quiet")) {
                        quiet = true;
        }

        if (vm.count("load")) {
            std::cout << "load from matrix "
                 << vm["load"].as<string>() << ".\n";
                        infilename = vm["load"].as<string>();
        }

        if (vm.count("wmat")) {
                        wmatdump = true;
                        std::cout << "wmat dump mode" << std::endl;
        }

        if (vm.count("eta")) {
            std::cout << "eta set to "
                 << vm["eta"].as<double>() << ".\n";
                        eta = vm["eta"].as<double>();
        }

        if (vm.count("scaling")) {
            std::cout << "scaling set to "
                 << vm["scaling"].as<double>() << ".\n";
                        beta_scaling = vm["scaling"].as<double>();
        }

        if (vm.count("tau_hom")) {
            std::cout << "tau_hom set to "
                 << vm["tau_hom"].as<double>() << ".\n";
                        tau_hom = vm["tau_hom"].as<double>();
        }

        if (vm.count("kappa")) {
            std::cout << "kappa set to "
                 << vm["kappa"].as<double>() << ".\n";
                        kappa = vm["kappa"].as<double>();
        }

        if (vm.count("simtime")) {
            std::cout << "simtime set to "
                 << vm["simtime"].as<double>() << ".\n";
                        simtime = vm["simtime"].as<double>();
                        stimtime = simtime;
        }

        if (vm.count("corr")) {
            std::cout << "enabling corr " << std::endl;
                        corr = true;
        }

        if (vm.count("stimfreq")) {
            std::cout << "stimfreq set to "
                 << vm["stimfreq"].as<double>() << ".\n";
                        stimfreq = vm["stimfreq"].as<double>();
        }

        if (vm.count("dir")) {
            std::cout << "dir set to "
                 << vm["dir"].as<string>() << ".\n";
                        dir = vm["dir"].as<string>();
        }

        if (vm.count("label")) {
            std::cout << "label set to "
                 << vm["label"].as<string>() << ".\n";
                        label = vm["label"].as<string>();
        }

        if (vm.count("we")) {
            std::cout << "we set to "
                 << vm["we"].as<double>() << ".\n";
                        w_ee = vm["we"].as<double>();
        }

        if (vm.count("strengthen")) {
            std::cout << "strengthen set to "
                 << vm["strengthen"].as<int>() << ".\n";
                        n_strengthen = vm["strengthen"].as<int>();
        }

        if (vm.count("stimfile")) {
            std::cout << "stimfile set to "
                 << vm["stimfile"].as<string>() << ".\n";
                        stimfile = vm["stimfile"].as<string>();
        }

        if (vm.count("wstim")) {
            std::cout << "wstim set to "
                 << vm["wstim"].as<double>() << ".\n";
                        wstim = vm["wstim"].as<double>();
        }

        if (vm.count("stimtime")) {
            std::cout << "stimtime set to "
                 << vm["stimtime"].as<double>() << ".\n";
                        stimtime = vm["stimtime"].as<double>();
        }

        if (vm.count("adapt")) {
            std::cout << "adaptation on " << std::endl;
                        adapt = true;
        }

        if (vm.count("noisyweights")) {
            std::cout << "noisyweights on " << std::endl;
                        noisyweights = true;
        }

        if (vm.count("fast")) {
            std::cout << "fast on " << std::endl;
                        fast = true;
        }
    }
    catch(std::exception& e) {
                std::cerr << "error: " << e.what() << "\n";
        return 1;
    }
    catch(...) {
                std::cerr << "Exception of unknown type!\n";
    }


        // double primetime = 3.0/(beta_scaling*eta*1.24488e-5);
        double primetime = 3.0*tau_hom;


        auryn_init(ac, av);

        if (!infilename.empty()) {
                std::stringstream iss;
                iss << infilename << "." << sys->mpi_rank();
                infilename = iss.str();
        }

        logger->msg("Setting up neuron groups ...",PROGRESS,true);


        NeuronGroup * neurons_e;
        if ( adapt )
                neurons_e = new AIFGroup(20000);
        else
                neurons_e = new IFGroup(20000);
        IFGroup * neurons_i = new IFGroup(5000);

        // initialize membranes
        neurons_i->set_tau_mem(10e-3);
        neurons_e->random_mem(-60e-3,10e-3);
        neurons_i->random_mem(-60e-3,10e-3);


        SpikingGroup * poisson = new PoissonGroup(2500,2);
        SparseConnection * con_exte = new SparseConnection(poisson, neurons_e, w_ext, sparseness, GLUT);



        msg = "Setting up I connections ...";
        logger->msg(msg,PROGRESS,true);
        SparseConnection * con_ie = new SparseConnection(neurons_i,neurons_e,
                        w_ie,sparseness,GABA);
        SparseConnection * con_ii = new SparseConnection(neurons_i,neurons_i,
                        w_ii,sparseness,GABA);

        msg =  "Setting up E connections ...";
        logger->msg(msg,PROGRESS,true);
        SparseConnection * con_ei = new SparseConnection(neurons_e,neurons_i,
                        w_ei, sparseness,GLUT);

        TripletScalingConnection * con_ee;

        if (infilename.empty()) {
                con_ee = new TripletScalingConnection(neurons_e,neurons_e,
                        w_ee, sparseness,tau_hom,eta,kappa,beta_scaling,wmax,GLUT);
                if ( noisyweights )
                        con_ee->random_data(w_ee,w_ee/4);
                for ( int i = 0 ; i < n_strengthen ; ++i ) {
                        con_ee->set_data(i,i*(wmax/n_strengthen));
                }
        }
        else {
                string str;
                str = infilename;
                str += ".wmat";
                std::stringstream oss;
                oss << "Loading weight matrix from " << str;
                logger->msg(oss.str(),PROGRESS,true);
                con_ee = new TripletScalingConnection(neurons_e,neurons_e,
                                str.c_str(),tau_hom,eta,kappa,beta_scaling,wmax,GLUT);


                str = infilename;
                str += ".e.nstate";
                neurons_e->load_from_file(str.c_str());
                str = infilename;
                str += ".i.nstate";
                neurons_i->load_from_file(str.c_str());

        }

        msg = "Initializing traces ...";
        logger->msg(msg,PROGRESS,true);
        con_ee->set_hom_trace(kappa);

        // TODO
        // con_ee->w->set_col(0,2*w_ee);

        msg = "Setting up monitors ...";
        logger->msg(msg,PROGRESS,true);

        if (wmatdump) {
                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.weight", dir.c_str(), file_prefix, beta_scaling, tau_hom, label.c_str(), sys->mpi_rank());
                WeightMatrixMonitor * wmatmon = new WeightMatrixMonitor( con_ee, strbuf , wmat_interval );
        }

        if ( !fast ) {
                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.ras", dir.c_str(), file_prefix, beta_scaling, tau_hom, label.c_str(), sys->mpi_rank(), 'e');
                SpikeMonitor * smon_e = new SpikeMonitor( neurons_e, strbuf , 2500);

                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.prate", dir.c_str(), file_prefix, beta_scaling, tau_hom, label.c_str(), sys->mpi_rank(), 'e');
                PopulationRateMonitor * pmon_e = new PopulationRateMonitor( neurons_e, strbuf, 1.0 );
        }

        sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.syn", dir.c_str(), file_prefix, beta_scaling, tau_hom, label.c_str(), sys->mpi_rank());
        WeightMonitor * wmon = new WeightMonitor( con_ee, strbuf, 0.1 );
        wmon->add_equally_spaced(20);

        RateChecker * chk = new RateChecker( neurons_e , -0.1 , 20.*kappa , 100e-3);



        FileInputGroup * filegroup;
        SparseConnection * con_stim;
        if (!stimfile.empty()) {
                msg = "Setting up stimulus ...";
                logger->msg(msg,PROGRESS,true);
                filegroup = new FileInputGroup(2000,stimfile.c_str(),true,1);
                con_stim = new SparseConnection( filegroup, neurons_e, GLUT);
                con_stim->set_name("Stimulus Connection");
                con_stim->allocate_manually(4*500*100*sparseness);
                con_stim->connect_block_random(wstim, sparseness, 0, 500, 0, 100);
                con_stim->connect_block_random(wstim, sparseness, 500, 1000, 100, 200);
                con_stim->connect_block_random(wstim, sparseness, 1000, 1500, 200, 300);
                con_stim->connect_block_random(wstim, sparseness, 1500, 2000, 300, 400);
                con_stim->finalize();

                logger->msg("Saving weight matrix ...",PROGRESS,true);
                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d_stim.wmat", dir.c_str(), file_prefix, beta_scaling, tau_hom, label.c_str(), sys->mpi_rank());
                con_stim->write_to_file(strbuf);
        }

        if (primetime>0) {
                msg = "Priming ...";
                // con_ee->set_beta(400);
                logger->msg(msg,PROGRESS,true);
                con_ee->stdp_active = false;
                sys->run(primetime,true);
        }
        if ( corr ) {
                const NeuronID size = 150;

                std::stringstream oss;
                oss << " Activating correlated input ... ";
                logger->msg(oss.str(),PROGRESS,true);

                if (eta > 0)
                        con_ee->stdp_active = true;
                // con_exte->set_block(0,2500,0,size,0);

                CorrelatedPoissonGroup * corr_e = new CorrelatedPoissonGroup(size,stimfreq,50,10e-3);
                // CorrelatedPoissonGroup * corr_i = new CorrelatedPoissonGroup(size,50,50,10e-3);
                corr_e->set_amplitude(50.);
                corr_e->set_timescale(5e-3);
                // corr->set_offset(2);

                // SparseConnection * con_corr_e = new SparseConnection(corr_e,neurons_e,corr_file.c_str(),GLUT);
                IdentityConnection * con_corr_e = new IdentityConnection(corr_e,neurons_e,w);

                // disabling external random input
                con_exte->set_block(0,2500,0,size,0.0);

                // set up Weight monitor

                sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.%c.ras", dir.c_str(), file_prefix, beta_scaling, tau_hom, label.c_str(), sys->mpi_rank(), 'c');
                SpikeMonitor * smon_c = new SpikeMonitor( corr_e, strbuf , size );

        }

        logger->msg("Simulating ...",PROGRESS,true);
        con_ee->set_beta(beta_scaling);
        if (eta > 0)
                con_ee->stdp_active = true;

        if (!sys->run(simtime,true))
                        errcode = 1;



        logger->msg("Saving neurons state ...",PROGRESS,true);
        sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.e.nstate", dir.c_str(), file_prefix, beta_scaling, tau_hom, label.c_str(), sys->mpi_rank());
        neurons_e->write_to_file(strbuf);
        sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.i.nstate", dir.c_str(), file_prefix, beta_scaling, tau_hom, label.c_str(), sys->mpi_rank());
        neurons_i->write_to_file(strbuf);

        logger->msg("Saving weight matrix ...",PROGRESS,true);
        sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.wmat", dir.c_str(), file_prefix, beta_scaling, tau_hom, label.c_str(), sys->mpi_rank());
        con_ee->write_to_file(strbuf);

        // save lifetime
        sprintf(strbuf, "%s/%s_e%.2et%.2f%s.%d.lifetime", dir.c_str(), file_prefix, beta_scaling, tau_hom, label.c_str(), sys->mpi_rank());
        std::ofstream killfile;
        killfile.open(strbuf);
        killfile << sys->get_time()-primetime << std::endl;
        killfile.close();

        if (errcode)
                auryn_abort(errcode);

        logger->msg("Freeing ...",PROGRESS,true);
        auryn_free();
        return errcode;
}

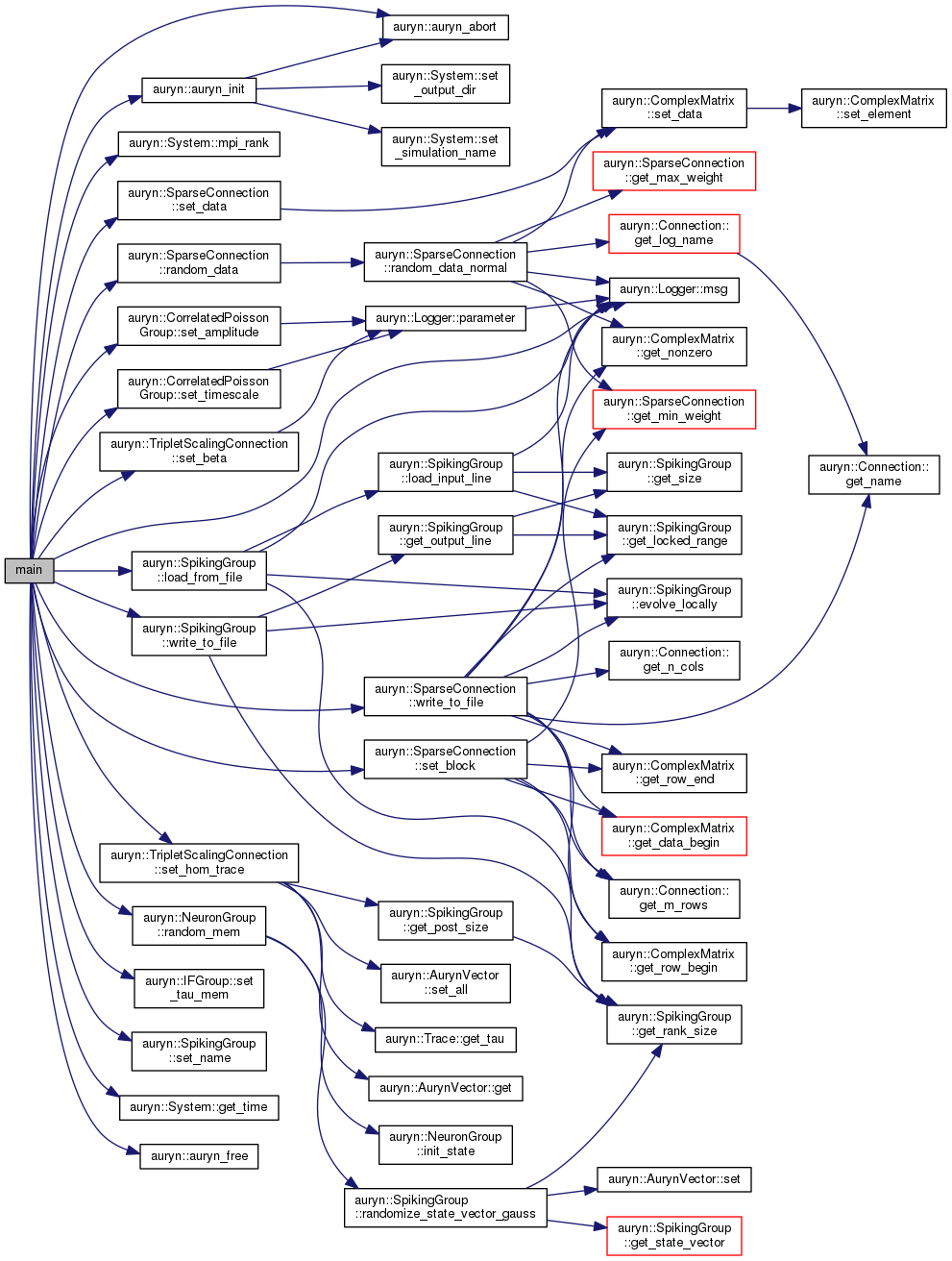

Here is the call graph for this function:
