sim_coba_benchmark.cpp File Reference

Simulation code for the Vogels Abbott benchmark following Brette et al. (2007) More...

#include "auryn.h"

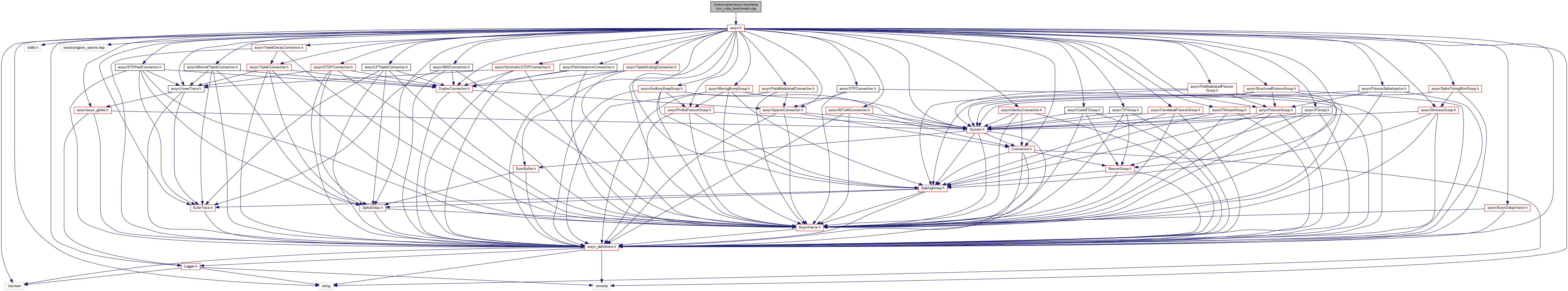

Include dependency graph for sim_coba_benchmark.cpp:

Functions
int	main (int ac, char *av[])

Detailed Description

Simulation code for the Vogels Abbott benchmark following Brette et al. (2007)

This simulation implements the Vogels Abbott benchmark as suggested by Brette et al. (2007) Journal of Computational Neuroscience 23: 349-398.

The network is based on a network by Vogels and Abbott as described in Vogels, T.P., and Abbott, L.F. (2005). Signal propagation and logic gating in networks of integrate-and-fire neurons. J Neurosci 25, 10786.

We used this network for benchmarking Auryn against other simulators in Zenke, F., and Gerstner, W. (2014). Limits to high-speed simulations of spiking neural networks using general-purpose computers. Front Neuroinform 8, 76.

See build/release/run_benchmark.sh for automatically run benchmarks to compare the performance of different Auryn builds.

Function Documentation

main()

int main	(	int	ac,
		char *	av[]
	)

                            {
        string dir = "/tmp";

        string fwmat_ee = "";
        string fwmat_ei = "";
        string fwmat_ie = "";
        string fwmat_ii = "";

        std::stringstream oss;
        string strbuf ;
        string msg;

        double w = 0.4; // [g_leak]
        double wi = 5.1; // [g_leak]



        double sparseness = 0.02;
        double simtime = 20.;

        NeuronID ne = 3200;
        NeuronID ni = 800;

        bool fast = false;

        int errcode = 0;


    try {

        po::options_description desc("Allowed options");
        desc.add_options()
            ("help", "produce help message")
            ("simtime", po::value<double>(), "simulation time")
            ("fast", "turns off most monitoring to reduce IO")
            ("dir", po::value<string>(), "load/save directory")
            ("fee", po::value<string>(), "file with EE connections")
            ("fei", po::value<string>(), "file with EI connections")
            ("fie", po::value<string>(), "file with IE connections")
            ("fii", po::value<string>(), "file with II connections")
        ;

        po::variables_map vm;
        po::store(po::parse_command_line(ac, av, desc), vm);
        po::notify(vm);

        if (vm.count("help")) {
            std::cout << desc << "\n";
            return 1;
        }

        if (vm.count("simtime")) {
                        simtime = vm["simtime"].as<double>();
        }

        if (vm.count("fast")) {
                        fast = true;
        }

        if (vm.count("dir")) {
                        dir = vm["dir"].as<string>();
        }

        if (vm.count("fee")) {
                        fwmat_ee = vm["fee"].as<string>();
        }

        if (vm.count("fie")) {
                        fwmat_ie = vm["fie"].as<string>();
        }

        if (vm.count("fei")) {
                        fwmat_ei = vm["fei"].as<string>();
        }

        if (vm.count("fii")) {
                        fwmat_ii = vm["fii"].as<string>();
        }

    }
    catch(std::exception& e) {
        std::cerr << "error: " << e.what() << "\n";
        return 1;
    }
    catch(...) {
        std::cerr << "Exception of unknown type!\n";
    }


        auryn_init( ac, av, dir );
        oss << dir  << "/coba." << sys->mpi_rank() << ".";
        string outputfile = oss.str();
        if ( fast ) sys->quiet = true;

        logger->set_logfile_loglevel(INFO);


        logger->msg("Setting up neuron groups ...",PROGRESS,true);

        TIFGroup * neurons_e = new TIFGroup( ne);
        TIFGroup * neurons_i = new TIFGroup( ni);

        neurons_e->set_refractory_period(5.0e-3); // minimal ISI 5.1ms
        neurons_i->set_refractory_period(5.0e-3);

        neurons_e->set_state("bg_current",2e-2); // corresponding to 200pF for C=200pF and tau=20ms
        neurons_i->set_state("bg_current",2e-2);


        logger->msg("Setting up E connections ...",PROGRESS,true);

        SparseConnection * con_ee
                = new SparseConnection( neurons_e,neurons_e, w, sparseness, GLUT);

        SparseConnection * con_ei
                = new SparseConnection( neurons_e,neurons_i, w,sparseness,GLUT);



        logger->msg("Setting up I connections ...",PROGRESS,true);
        SparseConnection * con_ie
                = new SparseConnection( neurons_i,neurons_e,wi,sparseness,GABA);

        SparseConnection * con_ii
                = new SparseConnection( neurons_i,neurons_i,wi,sparseness,GABA);

        if ( !fwmat_ee.empty() ) con_ee->load_from_complete_file(fwmat_ee);
        if ( !fwmat_ei.empty() ) con_ei->load_from_complete_file(fwmat_ei);
        if ( !fwmat_ie.empty() ) con_ie->load_from_complete_file(fwmat_ie);
        if ( !fwmat_ii.empty() ) con_ii->load_from_complete_file(fwmat_ii);



        if ( !fast ) {
                logger->msg("Use --fast option to turn off IO for benchmarking!", WARNING);

                msg = "Setting up monitors ...";
                logger->msg(msg,PROGRESS,true);

                std::stringstream filename;
                filename << outputfile << "e.ras";
                SpikeMonitor * smon_e = new SpikeMonitor( neurons_e, filename.str().c_str() );

                filename.str("");
                filename.clear();
                filename << outputfile << "i.ras";
                SpikeMonitor * smon_i = new SpikeMonitor( neurons_i, filename.str().c_str() );
        }


        // RateChecker * chk = new RateChecker( neurons_e , -0.1 , 1000. , 100e-3);

        logger->msg("Simulating ..." ,PROGRESS,true);
        if (!sys->run(simtime,true))
                        errcode = 1;

        if ( sys->mpi_rank() == 0 ) {
                logger->msg("Saving elapsed time ..." ,PROGRESS,true);
                char filenamebuf [255];
                sprintf(filenamebuf, "%s/elapsed.dat", dir.c_str());
                std::ofstream timefile;
                timefile.open(filenamebuf);
                timefile << sys->get_last_elapsed_time() << std::endl;
                timefile.close();
        }

        if (errcode)
                auryn_abort(errcode);

        logger->msg("Freeing ..." ,PROGRESS,true);
        auryn_free();
        return errcode;
}

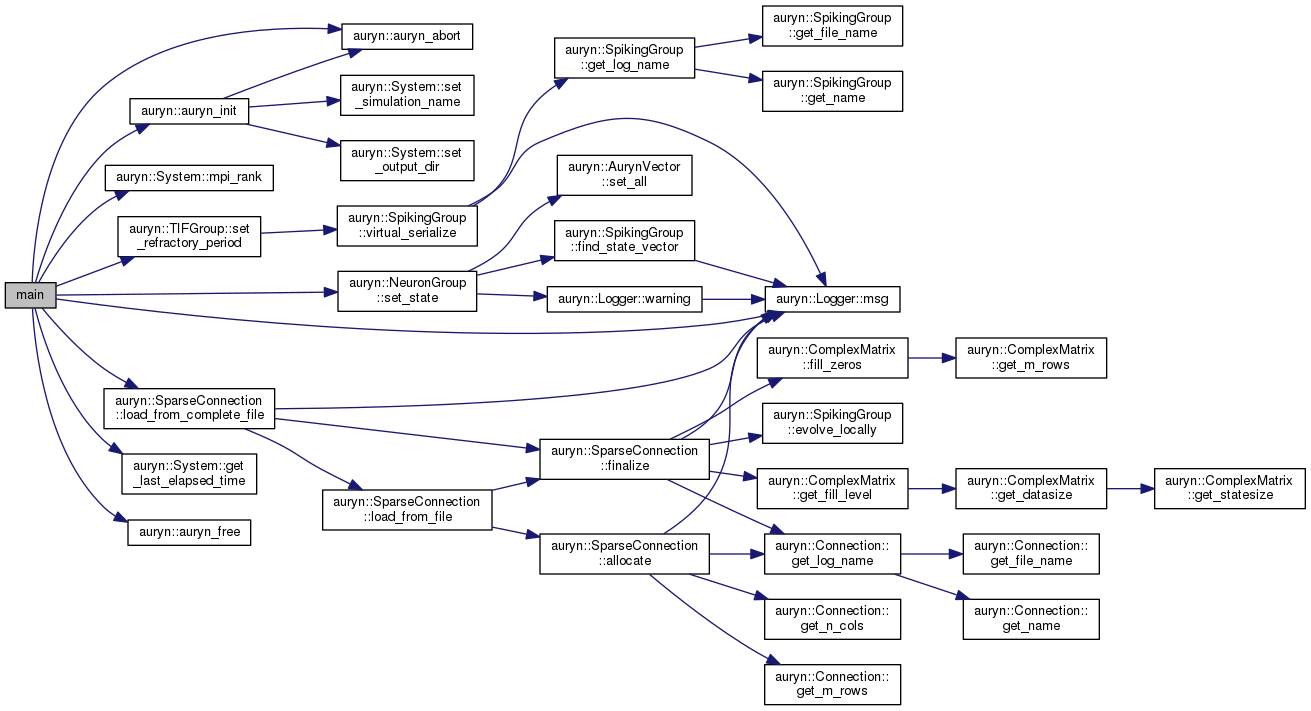

Here is the call graph for this function:
