sim_isp_big.cpp File Reference

This simulation illustrates inhibitory synaptic plasticity as modeled in Vogels et al. (2011) in a larger 200k cell network. More...

#include "auryn.h"

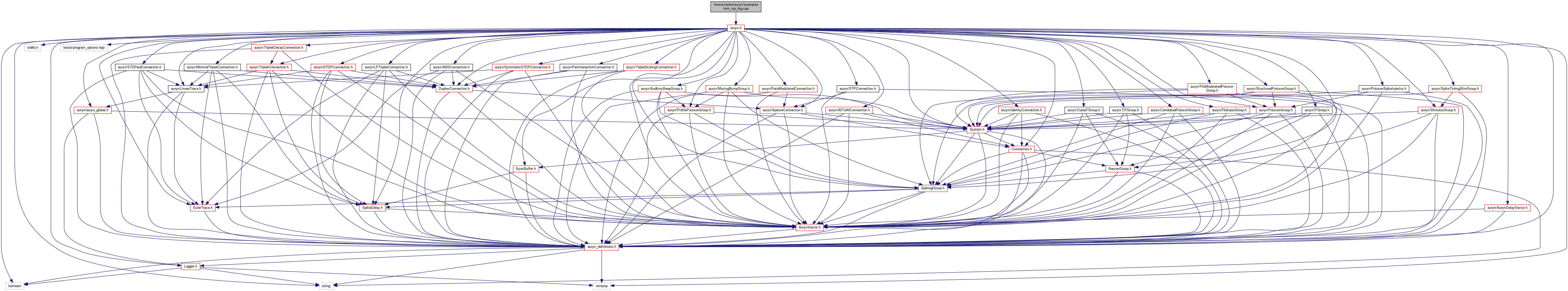

Include dependency graph for sim_isp_big.cpp:

Macros
#define	NE   160000
	Number of excitatory neurons. More...
#define	NI   40000
	Number of inhibitory neurons. More...

Functions
int	main (int ac, char *av[])

Detailed Description

This simulation illustrates inhibitory synaptic plasticity as modeled in Vogels et al. (2011) in a larger 200k cell network.

This simulation illustrates inhibitory synapitc plasticity as modeled in our paper: Vogels, T.P., Sprekeler, H., Zenke, F., Clopath, C., and Gerstner, W. (2011). Inhibitory Plasticity Balances Excitation and Inhibition in Sensory Pathways and Memory Networks. Science 334, 1569–1573.

Note that this is a parallel implementation of this network which requires a larger axonal delay than in the original paper. In this example the delay is 0.8ms which corresponds to Auryn's MINDELAY.

Macro Definition Documentation

NE

#define NE   160000

Number of excitatory neurons.

NI

#define NI   40000

Number of inhibitory neurons.

Function Documentation

main()

int main	(	int	ac,
		char *	av[]
	)

{
        double w = 0.0035;
        double w_ext = w ;
        double gamma = 10. ;
        double wmax = 1000*gamma*w;

        double sparseness = 0.02;

        double eta = 1e-5 ;
        double kappa = 3. ;
        double tau_stdp = 20e-3 ;
        bool stdp_active = true;
        bool poisson_stim = false;
        bool record_voltage = false;
        double winh = -1;
        double wei = 1;
        double chi = 2.;
        double lambda = 1.;
        double bg_current = 2.0e-2;//1.01e-2;

        double sparseness_afferents = 0.05;

        bool quiet = false;
        bool save = false;
        double simtime = 1000. ;
        NeuronID record_neuron = 30;
        // handle command line options

        string simname = "isp_big";
        string infilename = "";
        string patfilename = "";
        string outputfile = "";
        string dir = ".";
        string stimfile = "";
        string strbuf ;
        string msg;

        int errcode = 0;

    try {

        po::options_description desc("Allowed options");
        desc.add_options()
            ("help", "produce help message")
            ("quiet", "quiet mode")
            ("save", "save state at the end for loading")
            ("voltage", "activate voltage monitor")
            ("load", po::value<string>(), "input weight matrix")
            ("pat", po::value<string>(), "pattern file")
            ("dir", po::value<string>(), "output dir")
            ("stimfile", po::value<string>(), "stimulus file")
            ("eta", po::value<double>(), "learning rate")
            ("kappa", po::value<double>(), "target rate")
            ("simtime", po::value<double>(), "simulation time")
            ("active", po::value<bool>(), "toggle learning")
            ("poisson", po::value<bool>(), "toggle poisson stimulus")
            ("winh", po::value<double>(), "inhibitory weight multiplier")
            ("wei", po::value<double>(), "ei weight multiplier")
            ("chi", po::value<double>(), "chi recall parameter")
            ("lambda", po::value<double>(), "lambda storage parameter")
            ("sparseness", po::value<double>(), "sparseness of connections")
        ;

        po::variables_map vm;
        po::store(po::parse_command_line(ac, av, desc), vm);
        po::notify(vm);

        if (vm.count("help")) {
            std::cout << desc << "\n";
            return 1;
        }

        if (vm.count("quiet")) {
                        quiet = true;
        }

        if (vm.count("save")) {
                        save = true;
        }

        if (vm.count("voltage")) {
                        record_voltage = true;
        }

        if (vm.count("load")) {
                        infilename = vm["load"].as<string>();
        }

        if (vm.count("pat")) {
                        patfilename = vm["pat"].as<string>();
        }

        if (vm.count("dir")) {
                        dir = vm["dir"].as<string>();
        }

        if (vm.count("stimfile")) {
                        stimfile = vm["stimfile"].as<string>();
        }

        if (vm.count("eta")) {
                        eta = vm["eta"].as<double>();
        }

        if (vm.count("kappa")) {
                        kappa = vm["kappa"].as<double>();
        }

        if (vm.count("simtime")) {
                        simtime = vm["simtime"].as<double>();
        }

        if (vm.count("active")) {
                        stdp_active = vm["active"].as<bool>();
        }

        if (vm.count("poisson")) {
                        poisson_stim = vm["poisson"].as<bool>();
        }


        if (vm.count("winh")) {
                        winh = vm["winh"].as<double>();
        }

        if (vm.count("wei")) {
                        wei = vm["wei"].as<double>();
        }

        if (vm.count("chi")) {
                        chi = vm["chi"].as<double>();
        }

        if (vm.count("lambda")) {
                        lambda = vm["lambda"].as<double>();
        }

        if (vm.count("sparseness")) {
                        sparseness = vm["sparseness"].as<double>();
        }

    }
    catch(std::exception& e) {
        std::cerr << "error: " << e.what() << "\n";
        return 1;
    }
    catch(...) {
        std::cerr << "Exception of unknown type!\n";
    }

        // BEGIN Global definitions
        auryn_init( ac, av );
        sys->set_simulation_name(simname);
        // END Global definitions


        logger->msg("Setting up neuron groups ...",PROGRESS,true);
        TIFGroup * neurons_e = new TIFGroup(NE);
        TIFGroup * neurons_i = new TIFGroup(NI);
        neurons_e->random_mem(-60e-3,5e-3);
        // neurons_e->random_nmda(2,1);
        neurons_i->random_mem(-60e-3,5e-3);


        logger->msg("Setting up I connections ...",PROGRESS,true);
        SparseConnection * con_ei = new SparseConnection(neurons_e,neurons_i,wei*w,sparseness,GLUT,"EI connection");
        // con_ei->random_data(wei*w,wei*0.3*w);
        SparseConnection * con_ii = new SparseConnection(neurons_i,neurons_i,gamma*w,sparseness,GABA,"II connection");
        // con_ii->random_data(gamma*w,gamma*0.3*w);

        IdentityConnection * con_exte;
        if ( !stimfile.empty() && poisson_stim==true) {
                logger->msg("Setting up StimulusGroup ...",PROGRESS,true);
                StimulusGroup * stimgroup = new StimulusGroup(NE,stimfile,"",SEQUENTIAL,100);
                con_exte = new IdentityConnection(stimgroup,neurons_e,0.2,GLUT,"external input");
                stimgroup->set_mean_on_period(0.5);
                stimgroup->set_mean_off_period(20.);

                logger->msg("Enabling stimulus monitors ...",PROGRESS,true);
                strbuf = outputfile;
                strbuf += ".stimact";
        PatternMonitor * patmon = new PatternMonitor( stimgroup, strbuf.c_str(),patfilename.c_str());
        }

        logger->msg("Setting up E connections ...",PROGRESS,true);

        SparseConnection * con_ee
                = new SparseConnection(neurons_e,neurons_e,w,sparseness,GLUT,"EE connection");

        SparseConnection * con_ie
                = new SparseConnection(neurons_i,neurons_e,gamma*w,sparseness,GABA,"IE connection");

        // SymmetricSTDPConnection * con_ie
        //      = new SymmetricSTDPConnection(
        //                      neurons_i,neurons_e,
        //                      gamma*w,sparseness,
        //                      gamma*eta,kappa,tau_stdp,wmax,
        //                      GABA,"IE connection");

        if (!infilename.empty()) {
                logger->msg("Loading previous network state...",PROGRESS,true);
                sys->load_network_state(infilename);
        }

        if (winh>=0)
                con_ie->set_all(winh);

        if (!patfilename.empty()) {
                logger->msg("Loading patterns ...",PROGRESS,true);
                con_ee->load_patterns(patfilename,lambda*w);

                logger->msg("Enabling pattern monitors ...",PROGRESS,true);
                strbuf = outputfile;
                strbuf += ".patact";
        PatternMonitor * patmon = new PatternMonitor(neurons_e, strbuf.c_str(),patfilename.c_str());
        }

        logger->msg("Setting up monitors ...",PROGRESS,true);
        strbuf = outputfile;
        strbuf += ".e.ras";
        SpikeMonitor * smon_e = new SpikeMonitor( neurons_e, strbuf );

        strbuf = outputfile;
        strbuf += ".i.ras";
        SpikeMonitor * smon_i = new SpikeMonitor( neurons_i, strbuf );


        if ( record_voltage ) {
                strbuf = outputfile;
                strbuf += ".mem";
                        VoltageMonitor * vmon = new VoltageMonitor( neurons_e, record_neuron, strbuf.c_str() );

                strbuf = outputfile;
                strbuf += ".ampa";
                        StateMonitor * amon = new StateMonitor( neurons_e, record_neuron, "g_ampa", strbuf.c_str() );

                strbuf = outputfile;
                strbuf += ".gaba";
                        StateMonitor * gmon = new StateMonitor( neurons_e, record_neuron, "g_gaba", strbuf.c_str() );
        }

        RateChecker * chk = new RateChecker( neurons_e , 0.001 , 1000. , 100e-3);

        for ( int j = 0; j < (NE) ; j++ ) {
          neurons_e->set_bg_current(j,bg_current);
        }

        for ( int j = 0; j < (NI) ; j++ ) {
          neurons_i->set_bg_current(j,bg_current);
        }

        // We don't have an efficient way of setting input
        // currents from a file. So we do int manually here.
        if (!stimfile.empty() && poisson_stim==false) {
                logger->msg("Loading pattern ..." ,PROGRESS,true);
                char buffer[256];
                std::ifstream fin(stimfile.c_str());
                if (!fin) {
                        std::cout << "There was a problem opening file "
                        << stimfile
                        << " for reading."
                        << std::endl;
                        logger->msg("There was a problem opening file." ,ERROR,true);
                        return 1;
                }

                while ( fin.getline(buffer,256) ) {
                        std::stringstream iss( buffer );
                        NeuronID id;
                        iss >> id;

                        if (poisson_stim==false) {
                                neurons_e->set_bg_current(id,chi*bg_current);
                        }

                }
                fin.close();

                logger->msg("Running ..." ,PROGRESS,true);
                sys->run(2);

                logger->msg("Resetting ..." ,PROGRESS,true);
                for ( int j = 0; j < (NE) ; j++ ) {
                  neurons_e->set_bg_current(j,bg_current);
                }

        }

        logger->msg("Simulating ..." ,PROGRESS,true);
        // con_ie->stdp_active = stdp_active;

        if (!sys->run(simtime,true))
                        errcode = 1;

        if (save) {
                logger->msg("Saving network state ..." ,PROGRESS,true);
                sys->save_network_state(outputfile);
        }

        if (errcode)
                auryn_abort(errcode);

        logger->msg("Freeing ..." ,PROGRESS,true);
        auryn_free();

        return errcode;
}

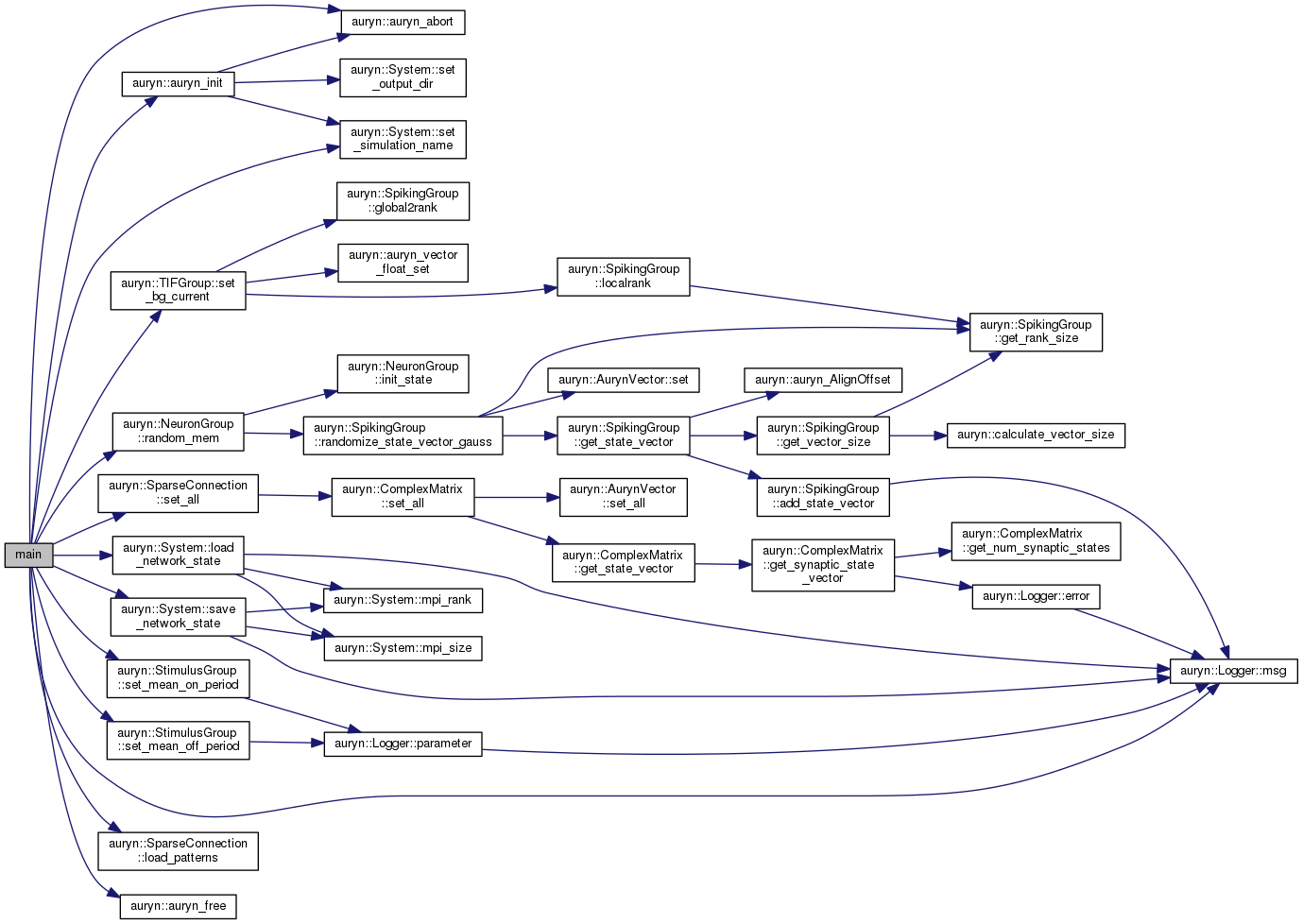

Here is the call graph for this function:
