sim_isp_orig.cpp File Reference

This simulation illustrates inhibitory synaptic plasticity as modeled in Vogels et al. (2011) More...

#include "auryn.h"

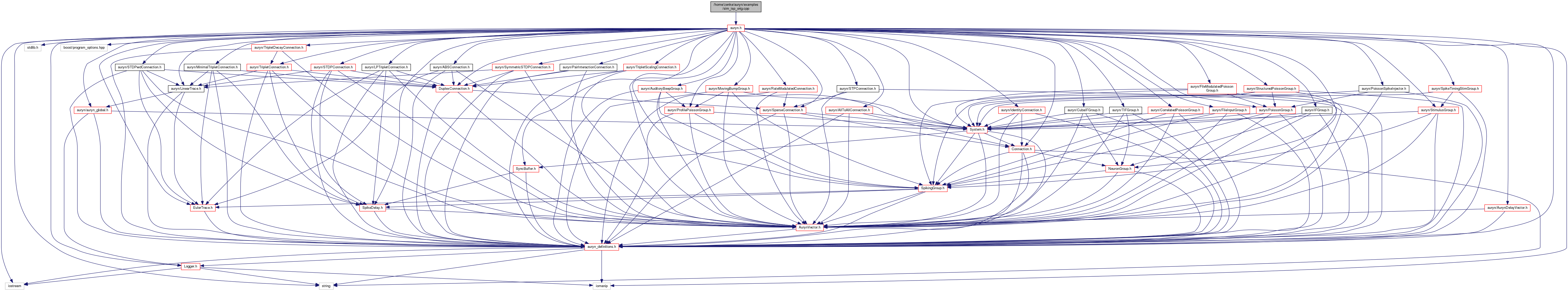

Include dependency graph for sim_isp_orig.cpp:

Macros
#define	NE   8000
	Number of excitatory neurons. More...
#define	NI   2000
	Number of inhibitory neurons. More...
#define	NP   1000
	Number of Poisson input neurons. More...

Functions
int	main (int ac, char *av[])

Detailed Description

This simulation illustrates inhibitory synaptic plasticity as modeled in Vogels et al. (2011)

This simulation illustrates inhibitory synapitc plasticity as modeled in our paper: Vogels, T.P., Sprekeler, H., Zenke, F., Clopath, C., and Gerstner, W. (2011). Inhibitory Plasticity Balances Excitation and Inhibition in Sensory Pathways and Memory Networks. Science 334, 1569–1573.

Note that this is a parallel implementation of this network which requires a larger axonal delay than in the original paper. In this example the delay is 0.8ms which corresponds to Auryn's MINDELAY.

Macro Definition Documentation

NE

#define NE   8000

Number of excitatory neurons.

NI

#define NI   2000

Number of inhibitory neurons.

NP

#define NP   1000

Number of Poisson input neurons.

Function Documentation

main()

int main	(	int	ac,
		char *	av[]
	)

{
        double w = 0.3 ;
        double w_ext = w ;
        double gamma = 10. ;
        double wmax = 10*gamma*w;

        double sparseness = 0.02 ;
        NeuronID seed = 1;

        double eta = 1e-4 ;
        double kappa = 3. ;
        double tau_stdp = 20e-3 ;
        bool stdp_active = false;
        bool poisson_stim = false;
        double winh = -1;
        double wei = 1;
        double chi = 10.;
        double bg_current = 2e-2;

        double poisson_rate = 100.;
        double sparseness_afferents = 0.05;

        bool quiet = false;
        double simtime = 1000. ;
        NeuronID record_neuron = 30;
        // handle command line options

        string infilename = "";
        string outputfile = "out";
        string netstatfile = "";
        string stimfile = "";
        string strbuf ;

        int errcode = 0;

    try {

        po::options_description desc("Allowed options");
        desc.add_options()
            ("help", "produce help message")
            ("quiet", "quiet mode")
            ("load", po::value<string>(), "input weight matrix")
            ("out", po::value<string>(), "output filename")
            ("stimfile", po::value<string>(), "stimulus file")
            ("eta", po::value<double>(), "learning rate")
            ("kappa", po::value<double>(), "target rate")
            ("simtime", po::value<double>(), "simulation time")
            ("active", po::value<bool>(), "toggle learning")
            ("poisson", po::value<bool>(), "toggle poisson stimulus")
            ("winh", po::value<double>(), "inhibitory weight multiplier")
            ("wei", po::value<double>(), "ei weight multiplier")
            ("chi", po::value<double>(), "chi current multiplier")
            ("seed", po::value<int>(), "random seed")
        ;

        po::variables_map vm;
        po::store(po::parse_command_line(ac, av, desc), vm);
        po::notify(vm);

        if (vm.count("help")) {
            std::cout << desc << "\n";
            return 1;
        }

        if (vm.count("quiet")) {
                        quiet = true;
        }

        if (vm.count("load")) {
            std::cout << "input weight matrix "
                 << vm["load"].as<string>() << ".\n";
                        infilename = vm["load"].as<string>();
        }

        if (vm.count("out")) {
            std::cout << "output filename "
                 << vm["out"].as<string>() << ".\n";
                        outputfile = vm["out"].as<string>();
        }

        if (vm.count("stimfile")) {
            std::cout << "stimfile filename "
                 << vm["stimfile"].as<string>() << ".\n";
                        stimfile = vm["stimfile"].as<string>();
        }

        if (vm.count("eta")) {
            std::cout << "eta set to "
                 << vm["eta"].as<double>() << ".\n";
                        eta = vm["eta"].as<double>();
        }

        if (vm.count("kappa")) {
            std::cout << "kappa set to "
                 << vm["kappa"].as<double>() << ".\n";
                        kappa = vm["kappa"].as<double>();
        }

        if (vm.count("simtime")) {
            std::cout << "simtime set to "
                 << vm["simtime"].as<double>() << ".\n";
                        simtime = vm["simtime"].as<double>();
        }

        if (vm.count("active")) {
            std::cout << "stdp active : "
                 << vm["active"].as<bool>() << ".\n";
                        stdp_active = vm["active"].as<bool>();
        }

        if (vm.count("poisson")) {
            std::cout << "poisson active : "
                 << vm["poisson"].as<bool>() << ".\n";
                        poisson_stim = vm["poisson"].as<bool>();
        }


        if (vm.count("winh")) {
            std::cout << "inhib weight multiplier : "
                 << vm["winh"].as<double>() << ".\n";
                        winh = vm["winh"].as<double>();
        }

        if (vm.count("wei")) {
            std::cout << "ei weight multiplier : "
                 << vm["wei"].as<double>() << ".\n";
                        wei = vm["wei"].as<double>();
        }

        if (vm.count("chi")) {
            std::cout << "chi multiplier : "
                 << vm["chi"].as<double>() << ".\n";
                        chi = vm["chi"].as<double>();
        }

        if (vm.count("seed")) {
            std::cout << "seed set to "
                 << vm["seed"].as<int>() << ".\n";
                        seed = vm["seed"].as<int>();
        }

    }
    catch(std::exception& e) {
        std::cerr << "error: " << e.what() << "\n";
        return 1;
    }
    catch(...) {
        std::cerr << "Exception of unknown type!\n";
    }

        // BEGIN Global definitions
        auryn_init( ac, av );
        // END Global definitions
        std::stringstream oss;
    oss << outputfile << "." << sys->mpi_rank();
    string basename = oss.str();


        logger->msg("Setting up neuron groups ...",PROGRESS,true);
        TIFGroup * neurons_e = new TIFGroup(NE);
        TIFGroup * neurons_i = new TIFGroup(NI);
        neurons_e->random_mem(-60e-3,5e-3);
        neurons_i->random_mem(-60e-3,5e-3);
        PoissonGroup * poisson = new PoissonGroup(NP,poisson_rate);


        logger->msg("Setting up connections ...",PROGRESS,true);
        SparseConnection * con_exte = new SparseConnection(poisson,neurons_e,0,sparseness_afferents,GLUT);
        con_exte->seed(seed);

        SparseConnection * con_ei = new SparseConnection(neurons_e,neurons_i,wei*w,sparseness,GLUT);

        SparseConnection * con_ii = new SparseConnection(neurons_i,neurons_i,gamma*w,sparseness,GABA);


        SparseConnection * con_ee = new SparseConnection(neurons_e,neurons_e,w,sparseness,GLUT);
        SymmetricSTDPConnection * con_ie = new SymmetricSTDPConnection(neurons_i,neurons_e,
                        gamma*w,sparseness,
                        gamma*eta,kappa,tau_stdp,wmax,
                        GABA);


        if (winh>=0)
                con_ie->set_all(winh);

        logger->msg("Setting up monitors ...",PROGRESS,true);
        strbuf = basename;
        strbuf += ".e.ras";
        SpikeMonitor * smon_e = new SpikeMonitor( neurons_e , strbuf.c_str() );

        strbuf = basename;
        strbuf += ".i.ras";
        SpikeMonitor * smon_i = new SpikeMonitor( neurons_i, strbuf.c_str() );

        strbuf = basename;
        strbuf += ".volt";
        StateMonitor * vmon = new StateMonitor( neurons_e, record_neuron, "mem", strbuf.c_str() );

        strbuf = basename;
        strbuf += ".ampa";
        StateMonitor * amon = new StateMonitor( neurons_e, record_neuron, "g_ampa", strbuf.c_str() );

        strbuf = basename;
        strbuf += ".gaba";
        StateMonitor * gmon = new StateMonitor( neurons_e, record_neuron, "g_gaba", strbuf.c_str() );

        RateChecker * chk = new RateChecker( neurons_e , 0.1 , 1000. , 100e-3);

        for ( int j = 0; j < NE ; j++ ) {
          neurons_e->set_bg_current(j,bg_current);
        }

        for ( int j = 0; j < NI ; j++ ) {
          neurons_i->set_bg_current(j,bg_current);
        }


        // stimulus
        if (!stimfile.empty()) {
                char ch;
                NeuronID counter = 0;
                std::ifstream fin(stimfile.c_str());
                while (!fin.eof() && counter<NE) {
                        ch = fin.get();
                        if (ch == '1') {
                                if (poisson_stim==true) {
                                        for (int i = 0 ; i < NP ; ++i)
                                                con_exte->set(i,counter,w_ext);
                                } else {
                                        neurons_e->set_bg_current(counter,chi*bg_current);
                                }
                        }
                        counter++;
                }
                fin.close();
        }

        if (!infilename.empty()) {
                sys->load_network_state(infilename);
        }

        logger->msg("Simulating ...",PROGRESS,true);
        con_ie->stdp_active = stdp_active;

        sys->run(simtime);

        logger->msg("Saving network state ...",PROGRESS,true);
        sys->save_network_state(netstatfile);

        logger->msg("Freeing ...",PROGRESS,true);
        auryn_free();

        logger->msg("Exiting ...",PROGRESS,true);
        return errcode;
}

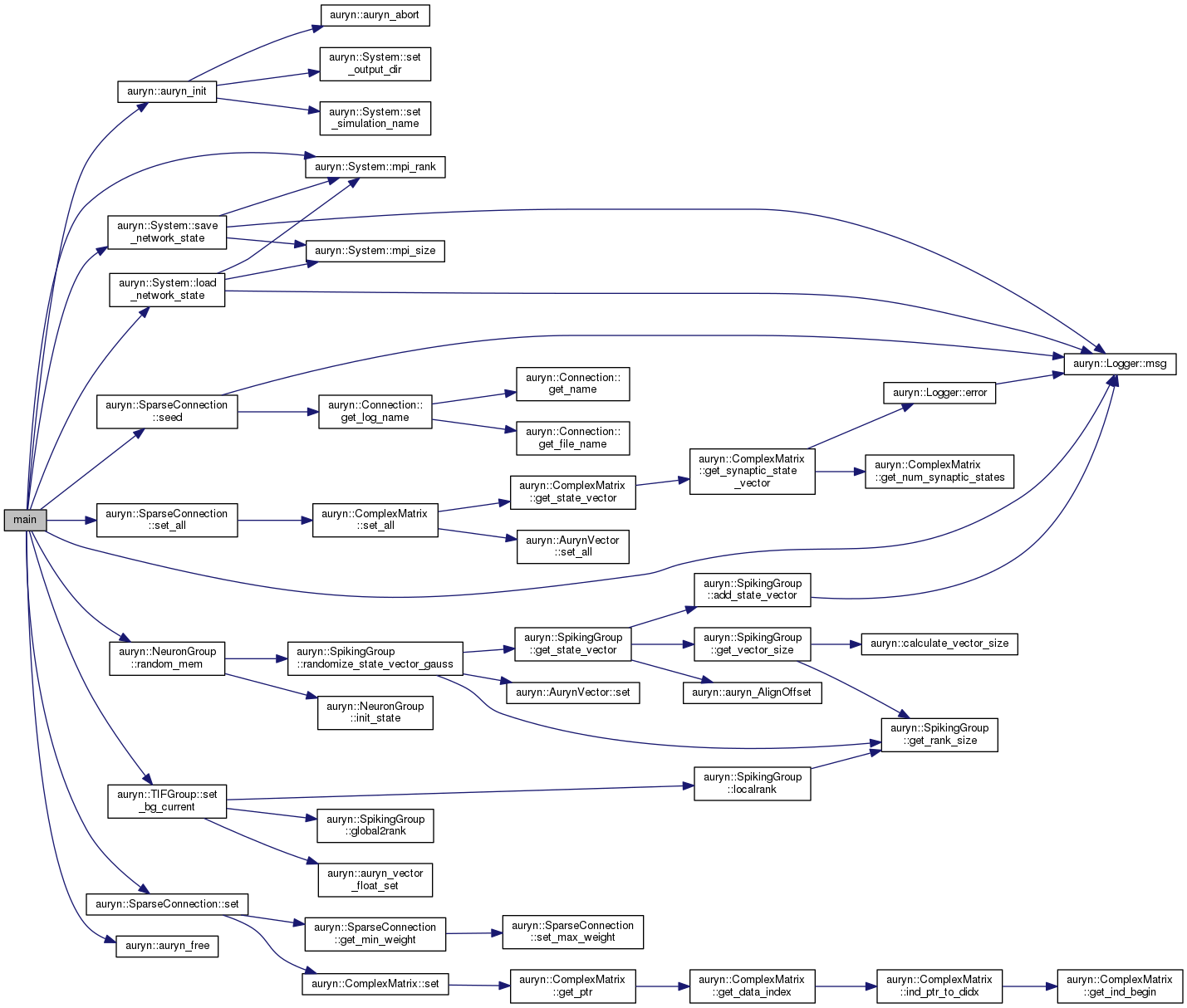

Here is the call graph for this function:
