auryn::CurrentInjector Class Reference

Stimulator class to add values in each timestep to arbitrary neuronal states. More...

#include <CurrentInjector.h>

Inheritance diagram for auryn::CurrentInjector:

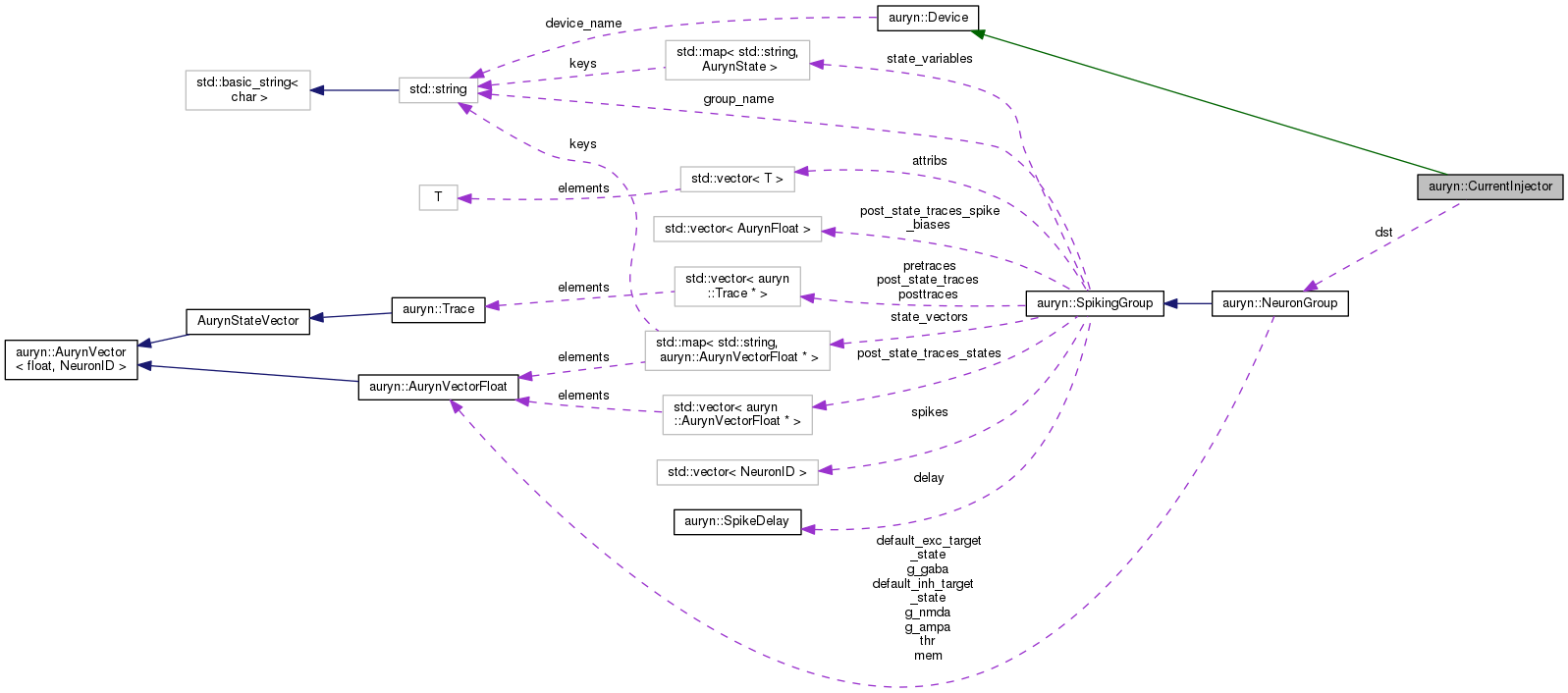

Collaboration diagram for auryn::CurrentInjector:

Public Member Functions
	CurrentInjector (NeuronGroup *target, std::string neuron_state_name="mem", AurynFloat initial_current=0.0)
	Default Constructor. More...
void	set_target_state (std::string state_name="mem")
	Sets the state to add the "current" in every timestep to. More...
virtual	~CurrentInjector ()
	Default Destructor. More...
void	set_current (NeuronID i, AurynFloat current)
	Sets current strengh for neuron i. More...
void	set_all_currents (AurynFloat current)
	Sets current strength for all neurons. More...
void	execute ()

Protected Attributes
NeuronGroup *	dst
Protected Attributes inherited from auryn::Device
std::string	device_name
	Identifying name for device. More...
bool	active
	Standard active switch. More...

Additional Inherited Members
Protected Member Functions inherited from auryn::Device
void	init ()
	Standard initializer to be called by the constructor. More...
virtual void	virtual_serialize (boost::archive::binary_oarchive &ar, const unsigned int version)
virtual void	virtual_serialize (boost::archive::binary_iarchive &ar, const unsigned int version)
	Device ()
	Standard constructor. More...
void	set_name (std::string s)
	Set device name. More...
std::string	get_name ()
	Get device name. More...
int	get_id ()
	Get numeric device id. More...
virtual void	flush ()
	Flush to file. More...
virtual	~Device ()
	Standard destructor. More...
virtual void	evolve ()

Detailed Description

Stimulator class to add values in each timestep to arbitrary neuronal states.

Most commonly used to inject "currents" to arbitraty neuronal states. Maintains an internal vector with numbers which are added (times auryn_timestep) in each timestep to the neuronal target vector (per default that is the membrane voltage and hence the operation corresponds to injecting a current). Note that because of this current units of CurrentInjector are in a sense arbitrary because they depend on the neuron model.

Constructor & Destructor Documentation

CurrentInjector()

CurrentInjector::CurrentInjector	(	NeuronGroup *	target,
		std::string	neuron_state_name = "mem",
		AurynFloat	initial_current = 0.0
	)

Default Constructor.

Parameters

                                                                                                               : Device( )
{
        auryn::sys->register_device(this);
        dst = target;

        set_target_state(neuron_state_name);
        currents = new AurynVectorFloat(dst->get_vector_size());

        currents->set_all( initial_current );
        alpha = auryn_timestep;
}

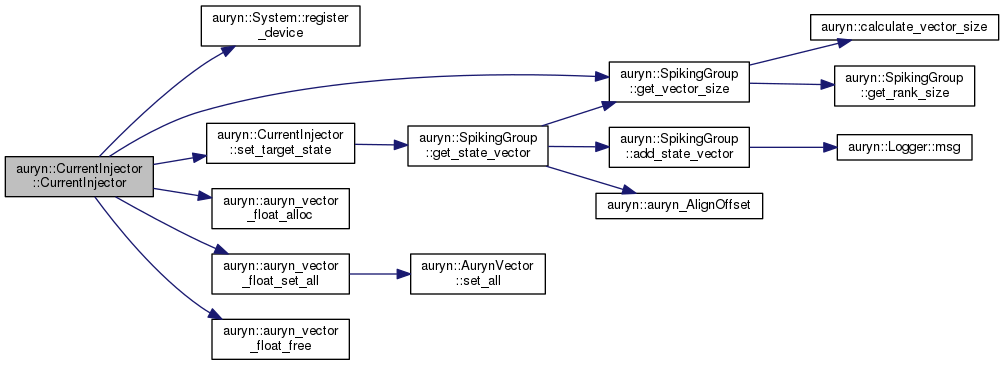

Here is the call graph for this function:

~CurrentInjector()

CurrentInjector::~CurrentInjector ( )

virtual

Default Destructor.

{
        free();
}

Member Function Documentation

execute()

void CurrentInjector::execute ( )

virtual

Implementation of necessary propagate() function.

Reimplemented from auryn::Device.

{
        if ( dst->evolve_locally() ) {
                target_vector->saxpy(alpha, currents);
        }
}

Here is the call graph for this function:

set_all_currents()

void CurrentInjector::set_all_currents

(

AurynFloat

current

)

Sets current strength for all neurons.

This must be a valid state vector name (default = mem)

Parameters

current

Current value to set

                                                         {
        currents->set_all(current);
}

Here is the call graph for this function:

set_current()

void CurrentInjector::set_current	(	NeuronID	i,
		AurynFloat	current
	)

Sets current strengh for neuron i.

This must be a valid state vector name (default = mem)

Parameters

i	Index of neuron
current	Current value to set

                                                                {
        currents->set(i, current);
}

Here is the call graph for this function:

set_target_state()

void CurrentInjector::set_target_state

(

std::string

state_name = "mem"

)

Sets the state to add the "current" in every timestep to.

                                                           {
        target_vector = dst->get_state_vector(state_name);
}

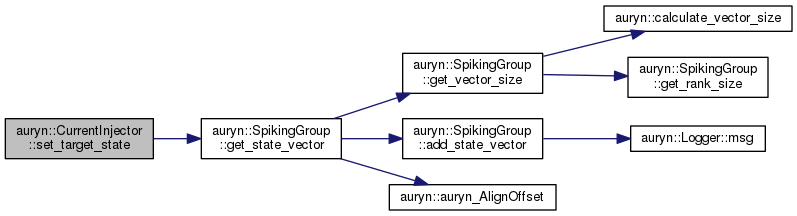

Here is the call graph for this function:

Member Data Documentation

dst

NeuronGroup* auryn::CurrentInjector::dst

protected

The target NeuronGroup

---

The documentation for this class was generated from the following files:

• /home/zenke/auryn/src/auryn/CurrentInjector.h
• /home/zenke/auryn/src/auryn/CurrentInjector.cpp
