auryn::PoissonSpikeInjector Class Reference

A PoissonGroup which can directly add its output spike to another SpikingGroup by piggy backing onto it. More...

#include <PoissonSpikeInjector.h>

Inheritance diagram for auryn::PoissonSpikeInjector:
Inheritance graph
[legend]

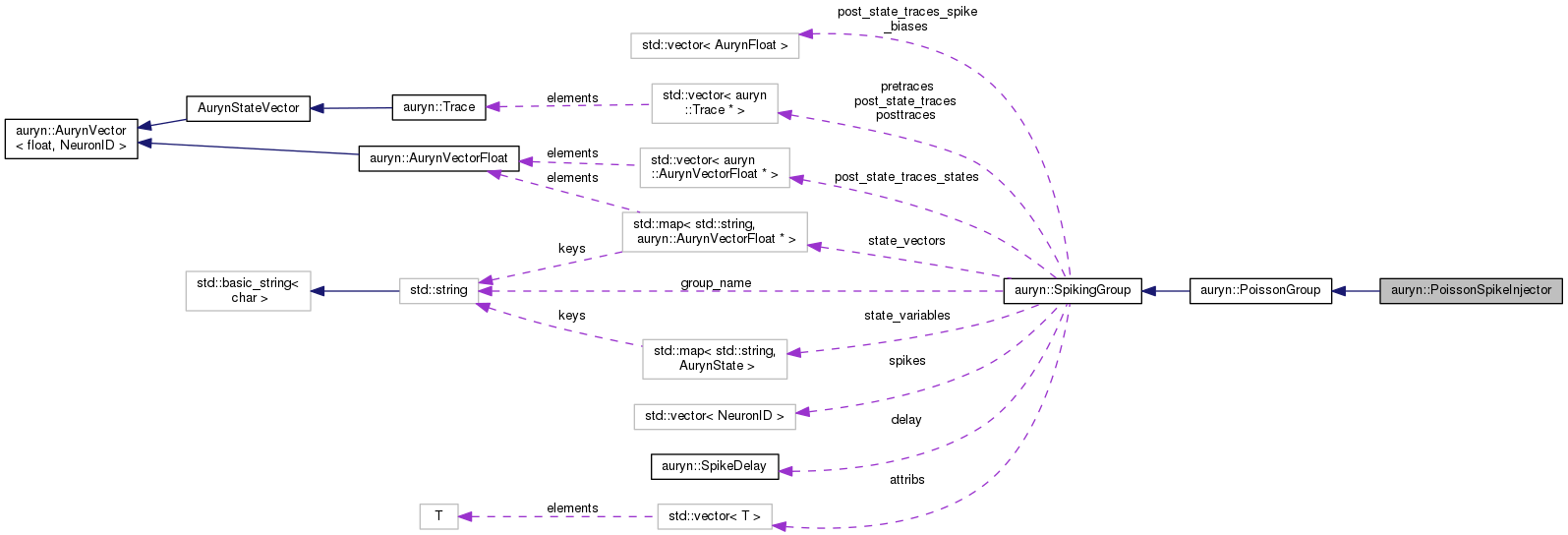

Collaboration diagram for auryn::PoissonSpikeInjector:
Collaboration graph
[legend]

Public Member Functions

 PoissonSpikeInjector (SpikingGroup *target_group, AurynDouble rate=5.)
 Standard constructor. More...

virtual ~PoissonSpikeInjector ()
 Default destructor. More...

virtual void evolve ()
 Standard evolve function. More...

- Public Member Functions inherited from auryn::PoissonGroup
 PoissonGroup (NeuronID n, AurynDouble rate=5.)

virtual ~PoissonGroup ()

void set_rate (AurynDouble rate)

AurynDouble get_rate ()

void seed (unsigned int s)

- Public Member Functions inherited from auryn::SpikingGroup
void add_state_vector (std::string key, AurynStateVector *state_vector)
 Adds a state vector passed as an argument to the dictinary. More...

void remove_state_vector (std::string key)
 Removes a state vector passed as an argument to the dictinary. More...

AurynStateVectorfind_state_vector (std::string key)
 Returns existing state vector by name or NULL if it does not exist. More...

AurynStateVectorget_state_vector (std::string key)
 Creates a new or returns an existing state vector by name. More...

AurynStateVectorget_existing_state_vector (std::string key)
 Returns an existing state with the supplied name. More...

AurynStateVectorcreate_state_vector (std::string key)
 Creates a new state vector and throws an exception if a vector with the same name exists. More...

AurynStateget_state_variable (std::string key)
 Creates a new group-wide state variable or returns an existing group-wide variable by name then returns a pointer to it. More...

void randomize_state_vector_gauss (std::string state_vector_name, AurynState mean, AurynState sigma, int seed=12239)
 Randomizes the content of a state vector with Gaussian random numbers. Seeding is MPI save. More...

 SpikingGroup (NeuronID size, NodeDistributionMode mode=AUTO)
 Default constructor. More...

virtual ~SpikingGroup ()
 Default destructor. More...

virtual void evolve_traces ()
 Evolves traces. More...

void set_name (std::string s)
 Set connection name. More...

std::string get_name ()
 Retrieves the groups name. More...

std::string get_file_name ()
 Extracts the class name of the connection from the file name. More...

std::string get_log_name ()
 Returns a string which is the combination of file and connection name for logging. More...

void inc_num_spike_attributes (int x)
 Instructs SpikingGroup to increase the number of spike attributes by x. More...

int get_num_spike_attributes ()

void conditional_evolve ()
 Conditional evolve functino which is called by System. More...

unsigned int get_locked_rank ()
 Returns locked rank for SpikingGroups which are not distributed across all ranks. More...

unsigned int get_locked_range ()
 Returns locked range of ranks for SpikingGroups which are not distributed across all ranks. More...

SpikeContainerget_spikes ()
 Returns pointer to a spike container that contains spikes which arrive in this timestep from all neurons in this group. More...

SpikeContainerget_spikes_immediate ()
 Returns pointer to SpikeContainer of spikes generated during the last evolve() step. More...

AttributeContainerget_attributes ()
 Returns pointer to Attributecontainer for usage in propagating Connection objects. Same as get_spikes_immediate(), however might be overwritten to contain Spikes that have been delayed. More...

AttributeContainerget_attributes_immediate ()
 Returns pointer to Attributecontainer of spikes generated during the last evolve() step. More...

NeuronID get_size ()
 Returns the size of the group. More...

NeuronID get_pre_size ()
 Returns the size of the group. More...

NeuronID calculate_rank_size (int rank=-1)
 Determines rank size and stores it in local variable. More...

NeuronID get_rank_size ()
 Returns the size on this rank. More...

NeuronID get_post_size ()
 Returns the size on this rank. More...

void set_clock_ptr (AurynTime *clock)

bool evolve_locally ()
 Returns true if the calling instance has units which are integrated on the current rank. More...

NeuronID get_uid ()
 Get the unique ID of the class. More...

Traceget_pre_trace (AurynFloat x)
 Returns a pre trace with time constant x. More...

void add_pre_trace (Trace *tr)
 Adds trace to pretrace stack of a connection. More...

Traceget_post_trace (AurynFloat x)
 Returns a post trace with time constant x. More...

void add_post_trace (Trace *tr)
 Adds trace to posttrace stack of a connection. More...

void push_spike (NeuronID spike)
 Pushes a local NeuronID as spike into the axonal SpikeDelay buffer. More...

void push_attribute (AurynFloat attrib)
 Pushes a spike attribute into the axonal SpikeDelay buffer. More...

void clear_spikes ()
 Clears all spikes stored in the delays which is useful to reset a network during runtime. More...

Traceget_post_state_trace (std::string state_name="mem", AurynFloat tau=10e-3, AurynFloat b=0.0)
 Returns a post trace of a neuronal state variable e.g. the membrane potential with time constant tau. More...

Traceget_post_state_trace (AurynStateVector *state, AurynFloat tau=10e-3, AurynFloat b=0.0)
 Returns a post trace of a neuronal state variable specified by pointer. More...

void set_delay (int d)
 Sets axonal delay for this SpikingGroup. More...

virtual bool write_to_file (const char *filename)
 Writes current states of SpikingGroup to human-readible textfile if implemented in derived class. More...

virtual bool load_from_file (const char *filename)
 Reads current states of SpikingGroup to human-readible textfile if implemented in derived class. More...

NeuronID ranksize ()
 Returns size (num of neurons) on the current rank. More...

NeuronID global2rank (NeuronID i)
 Converts global NeuronID within the SpikingGroup to the local NeuronID on this rank. More...

NeuronID rank2global (NeuronID i)
 Converts local NeuronID from the local rank to a global NeuronID. More...

bool localrank (NeuronID i)
 Checks if the global NeuronID i is integrated on this MPI rank. More...

NeuronID get_vector_size ()
 Rank size but rounded up to multiples of 4 (or potentially some other and larger number in future versions) for SSE compatibility. More...


Additional Inherited Members

- Public Attributes inherited from auryn::SpikingGroup
SpikeDelaydelay

bool active
 Toggles group active. More...

std::map< std::string, AurynStateVector * > state_vectors

std::map< std::string, AurynStatestate_variables

- Protected Member Functions inherited from auryn::SpikingGroup
virtual void load_input_line (NeuronID i, const char *buf)

virtual std::string get_output_line (NeuronID i)

virtual void virtual_serialize (boost::archive::binary_oarchive &ar, const unsigned int version)
 Implementatinon of serialize function for writing. More...

virtual void virtual_serialize (boost::archive::binary_iarchive &ar, const unsigned int version)
 Implementatinon of serialize function for reading. More...

void free ()
 Frees potentially allocated memory. More...

- Protected Attributes inherited from auryn::PoissonGroup
NeuronID x

- Protected Attributes inherited from auryn::SpikingGroup
std::vector< Trace * > pretraces
 Pretraces. More...

std::vector< Trace * > posttraces
 Posttraces. More...

std::vector< Trace * > post_state_traces
 Post state traces. More...

std::vector< AurynFloatpost_state_traces_spike_biases

std::vector< AurynStateVector * > post_state_traces_states

std::string group_name
 Identifying name for object. More...

NeuronID size
 Stores the size of the group. More...

NeuronID rank_size
 Stores the size of the group on this rank. More...

SpikeContainerspikes
 SpikeContainers to store spikes produced during one step of evolve. More...

AttributeContainerattribs

- Static Protected Attributes inherited from auryn::SpikingGroup
static AurynTimeclock_ptr = NULL


Detailed Description

A PoissonGroup which can directly add its output spike to another SpikingGroup by piggy backing onto it.

Todo:
Have to make sure this group has the same rank_lock structure as the piggy back group

Constructor & Destructor Documentation

◆ PoissonSpikeInjector()

PoissonSpikeInjector::PoissonSpikeInjector ( SpikingGroup target_group,
AurynDouble  rate = 5.
)

Standard constructor.

Parameters
target_groupis the group to whose output we add the random poisson spikes
rateis the mean firing rate of the poisson neurons in the spike injector
30  : PoissonGroup( target_group->get_size(), rate )
31 {
32  target = target_group;
33  if ( sys->mpi_size() > 1 ) {
34  logger->warning("PoissonSpikeInjector might not work correctly when run with MPI.");
35  // TODO still need to make sure that rank lock etc does not screw up things if the target is distributed differently
36  }
37 }
unsigned int mpi_size()
Returns number of ranks.
Definition: System.cpp:1004
void warning(std::string text)
Definition: Logger.cpp:136
Logger * logger
Global pointer to instance of Logger which needs to be initialized in every simulation main program...
Definition: auryn_global.cpp:36
System * sys
Global pointer to instance of System which needs to be initialized in every simulation main program...
Definition: auryn_global.cpp:37
NeuronID get_size()
Returns the size of the group.
Definition: SpikingGroup.cpp:304
PoissonGroup(NeuronID n, AurynDouble rate=5.)
Definition: PoissonGroup.cpp:47
Here is the call graph for this function:

◆ ~PoissonSpikeInjector()

PoissonSpikeInjector::~PoissonSpikeInjector ( )
virtual

Default destructor.

40 {
41 }

Member Function Documentation

◆ evolve()

void PoissonSpikeInjector::evolve ( )
virtual

Standard evolve function.

Reimplemented from auryn::PoissonGroup.

44 {
45  super::evolve();
46
47  // now add Poisson spikes to target group
48  SpikeContainer * a = target->get_spikes_immediate();
50  a->insert(a->end(), b->begin(), b->end());
51 }
std::vector< NeuronID > SpikeContainer
Spike container type. Used for storing spikes.
Definition: auryn_definitions.h:161
virtual void evolve()
Definition: PoissonGroup.cpp:82
SpikeContainer * get_spikes_immediate()
Returns pointer to SpikeContainer of spikes generated during the last evolve() step.
Definition: SpikingGroup.cpp:250

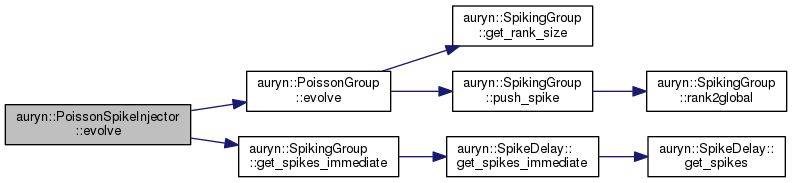

Here is the call graph for this function:
